Singlefold Aluminum Ramp 30 Wide - 800 lbs number SFW230

PVI Singlefold Aluminum Wheelchair Ramp 30 in. Wide

SKU: SFW230
Availability: In Stock
$162.99
$162.99

Select Length: 2'
PVI Singlefold Aluminum Wheelchair Ramp 30 in. Wide

PVI Singlefold Aluminum Wheelchair Ramp 30 in. Wide

$162.99

PVI Singlefold Aluminum Wheelchair Ramp 30 in. Wide

$162.99
Select Length: 2'

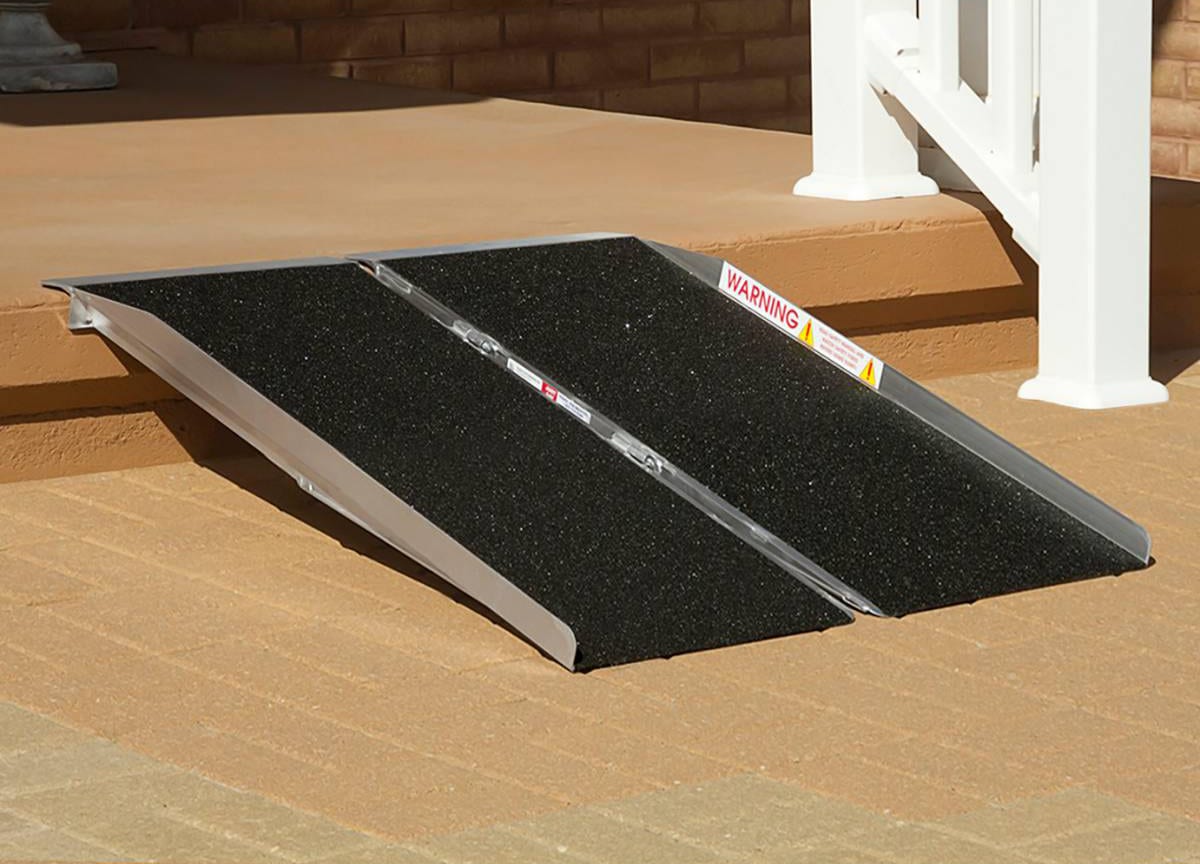

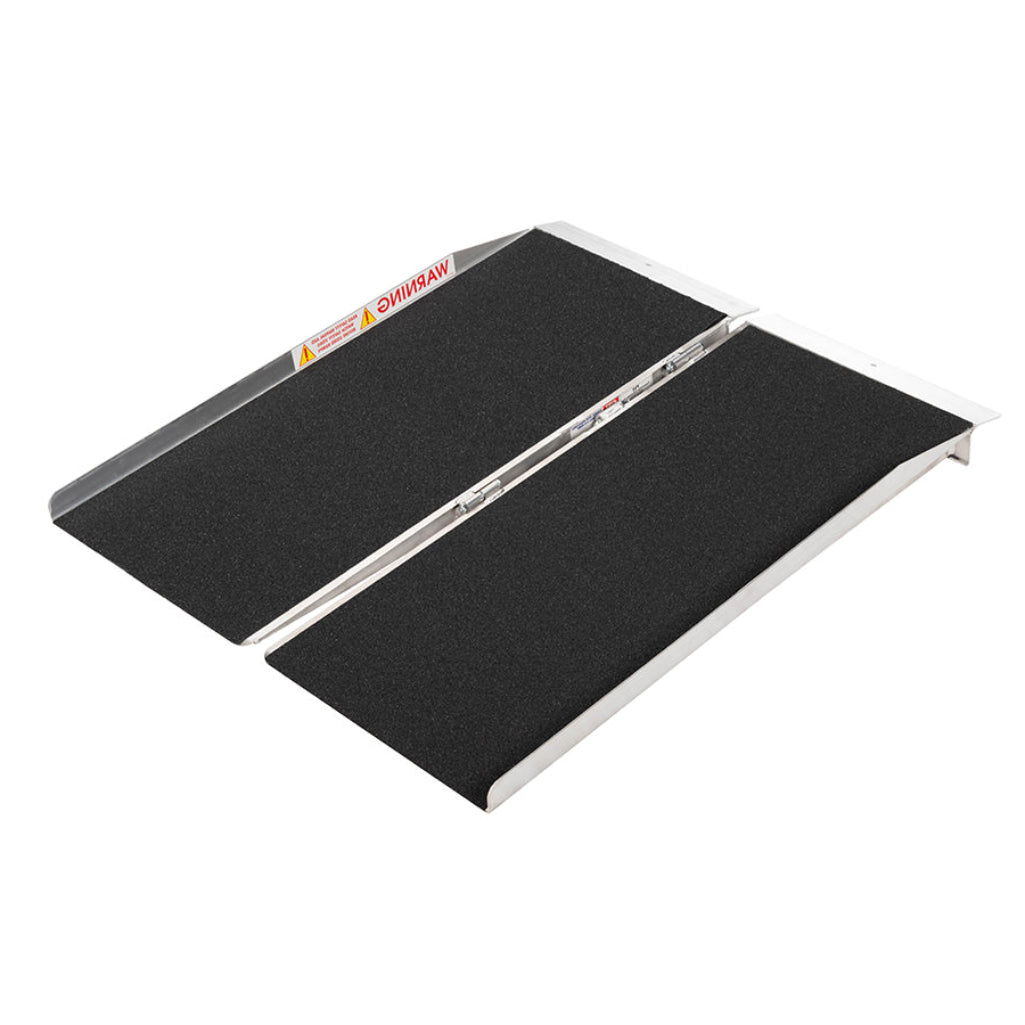

Elevate your mobility with the PVI Singlefold Aluminum Wheelchair Ramp 30 in. Wide. Made from durable aluminum, this ramp provides easy access for wheelchairs and scooters and features a convenient folding design, making transporting and storing the ramp easier. With a weight capacity of 800 lbs and several lengths options, say goodbye to obstacles with this reliable solid ramp.

Product Features

  • High strength, lightweight aluminum construction
  • Anti-slip, high traction grit surface
  • Durable, welded construction

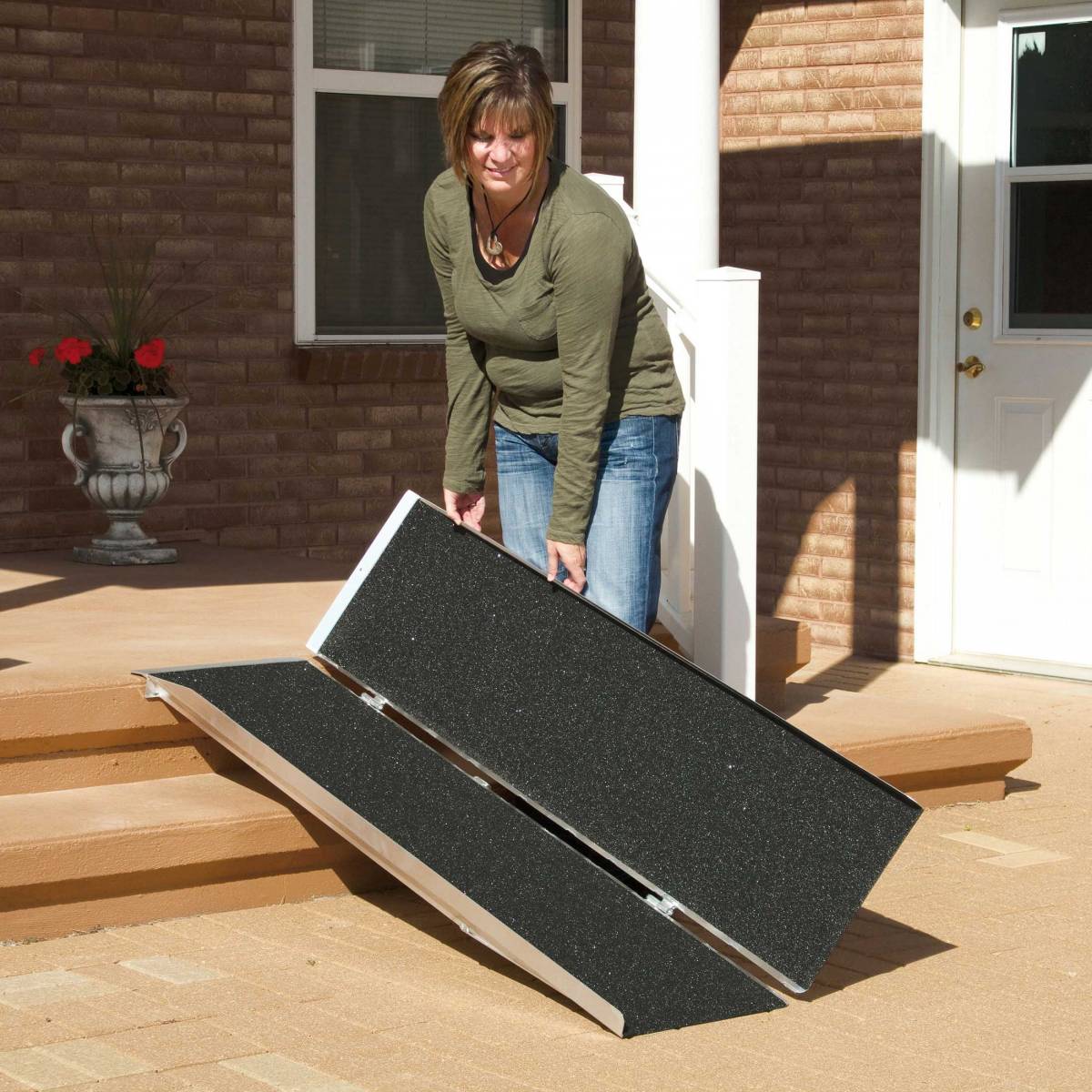

  • Folds in half for easier transportation and storage
  • Stable 30" wide platform accommodates standard wheelchairs and scooters
  • Features 1.5-in safety curb
  • Steel security pins and install video included
  • Up to 800 lbs weight capacity
  • PVI ramps are made in the USA
  • Backed by the manufacturer's Limited Lifetime Warranty


Select the Right Size Ramp:

  • 6-ft Ramp accommodates rises between 6-in to 12-in for occupied wheelchair and scooter access.
  • 5-ft Ramp accommodates rises between 5-in to 10-in for occupied wheelchair and scooter access.
  • 4-ft Ramp accommodates rises between 4-in to 8-in for occupied wheelchair and scooter access.
  • 3-ft Ramp accommodates rises between 3-in to 6-in for occupied wheelchair and scooter access.
  • 2-ft Ramp accommodates rises between 2-in to 4-in for occupied wheelchair and scooter access.

Additional ramp selection guidelines can be found here: Click Here for Ramp Selection and Dimension Guidelines

Product Specifications:
Use the following table of specifications to determine the model number. If there are multiple product options, select the correct model number when adding this product to your cart.

Model Number Size L x W Folded Size Weight Capacity*
SFW230 2' x 30" 24" x 16" x 4 7/8" 10 lbs. 800 lbs
SFW330 3' x 30" 36" x 16" x 4 7/8" 15 lbs. 800 lbs
SFW430 4' x 30" 48" x 16" x 4 7/8" 20 lbs. 800 lbs
SFW530 5' x 30" 60" x 16" x 4 7/8" 24 lbs. 800 lbs
SFW630 6' x 30" 72" x 16" x 4 7/8" 33 lbs. 800 lbs

*Handle not included on SFW230
**Maximum Ramp Capacity: 400 lbs. for single axle. 800 lbs. for two axles



Downloadable Content:

Click Here for More Information On PVI Singlefold Ramps (PDF)
Click Here for Ramp Instructions (PDF)

Learn more about the PVI Singlefold Ramps by watching this video


Prairie View Industries (PVI)
