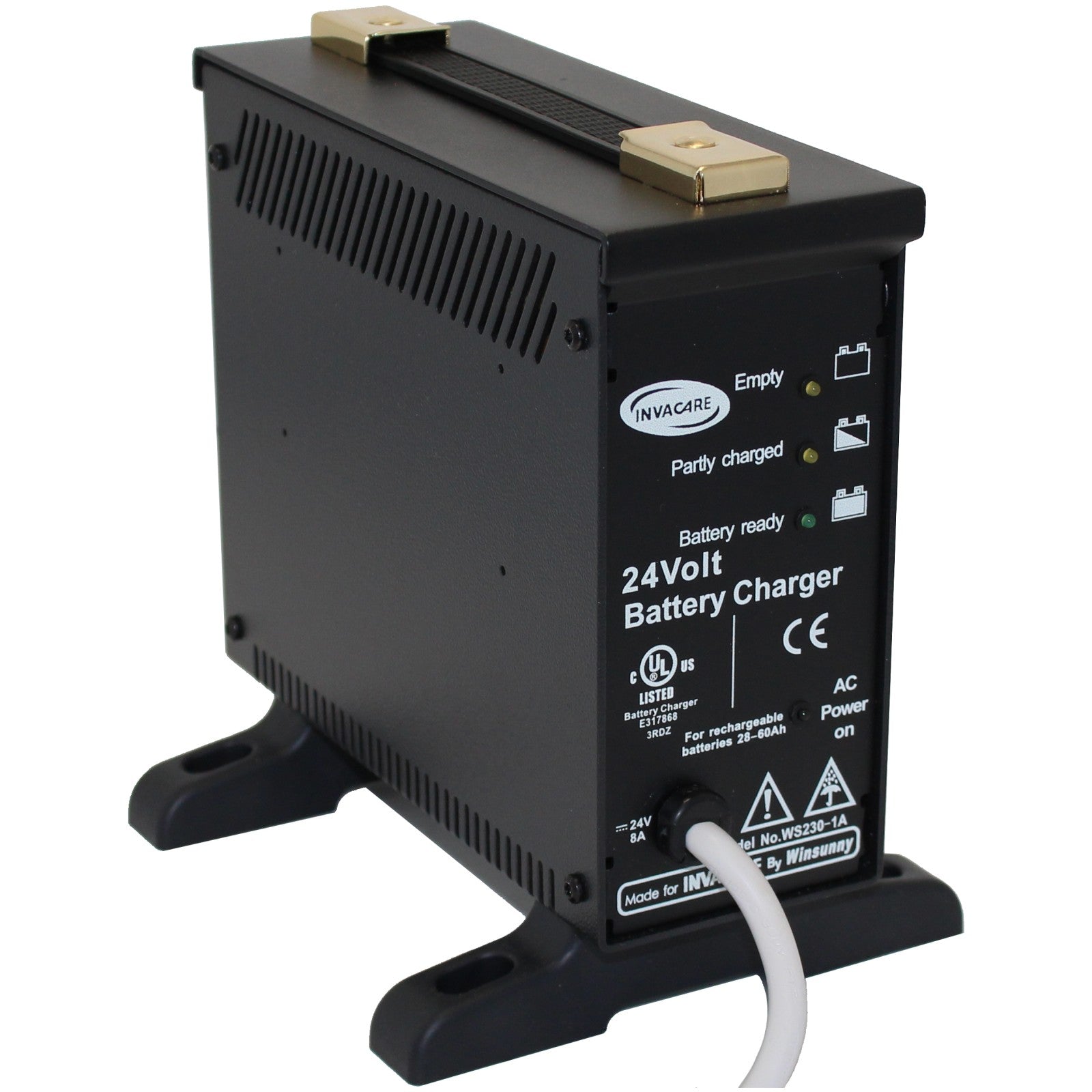

Invacare 8 Amp Battery Charger for Power Wheelchair / Scooter

The Invacare 8 Amp Battery Charger for Power Wheelchair and Scooters is fully automatic and will work with all wheelchairs and scooters using an XLR connector.

Product Features

• Featuring a microcomputer controlled design with fully automatic operation - just plug it in

• 8 amp output provides fast efficient charging

• Multi LED lights show charging status

• Charger can be be free standing or wall mounted

• Standard XLR pin connector fits a variety of wheelchairs and scooters from all the major brands

• Works with all lead acid or gel cell batteries 26 to 100 Ah
• Can be used with 22NF, Group 34, Group 24 batteries

• Sold individually (each)

Fitment Notes:
The XLR pin connector is standard on many electric wheelchairs and scooters from Invacare, Quickie, Pride, Merits, Pacesaver, plus many more. You can see a picture of the XLR connector above to verify that your wheelchair or scooter has this. Your wheelchair or scooter must use a 24V system (two batteries) and the batteries must gel cell lead acid 26 to 100 Amp Hour. Works with all battery sizes. Use only with a 120V (110V) AC main supply.

This battery charger will work with the following Invacare wheelchairs:

• Arrow FWD

• FDX (Formula CGE option included)

• Nutron

• P7E

• Power Tiger

• Pronto M50 Pronto M51 with SureStep (Before 1/20/05)

• Pronto M50/ M51 with SureStep (After 1/19/05) Pronto M61 with SureStep

• Pronto M71 with SureStep

• Pronto M71 jr. with SureStep

• Pronto M91 with SureStep

• Pronto M94 with SureStep

• Pronto R2, Ranger II MWD for WSBT (After 2/29/2000)

• Storm Series

• Storm Series 2G

• Storm Series 3G (Elevating Seat included ESS6-STM)

• Storm Series Power 9000 (After 11/14/1995)

• Storm Series Ranger II

• Storm Series Ranger II Excel R2 jr.

• Storm Series Ranger II MWD (Before 3/1/2000)

• TDX SC (CGE option included) and TDX SPREE (CGE standard)

• TDX SI, TDX SI-2 TDX SI-HD

• TDX 3 TDX 3 SE TDX 4 TDX 5

• TDX SP/SP-GT/SR

• Xterra GT

Note* It is important that your Invacare wheelchair or scooter (or those from other brands) has the round 3 pin (XLR connector). Some of the models listed above had the option for an on-board charger. If this is the case, you may still have the XLR connector located on the controller which can be used for charging.

Product Specifications:

• Input voltage range: 110-120 volts AC @ 60Hz
• Input current: 3.4 Amps @120 volts AC @ 60hz
• Charging current: 7.7 Amps @ 27 volts nominal

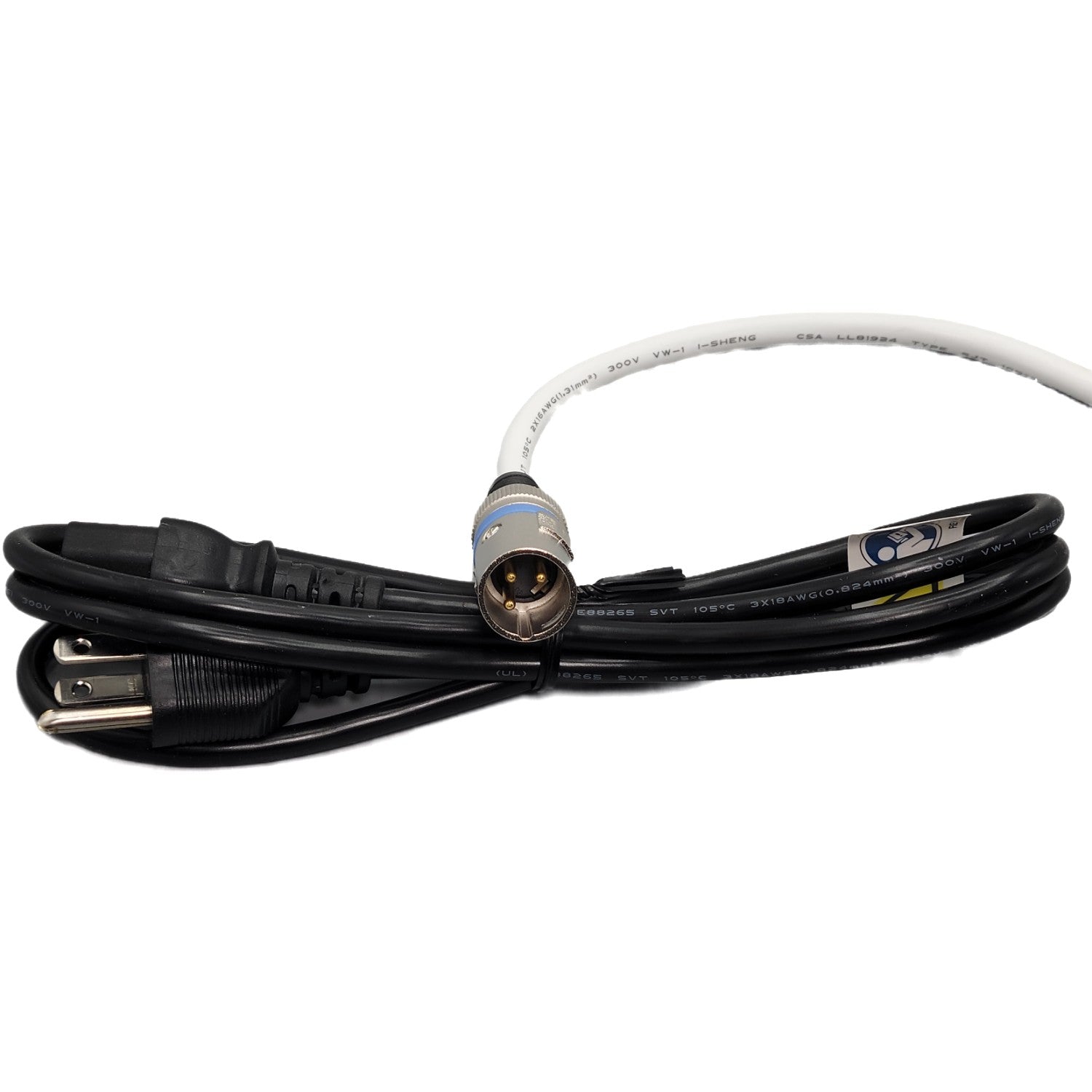

• Main power cable length: 8 ft. (2.44m)
• Charging cable length: 4.92 ft. (1.5m)
• Output connector: standard male 3 pin power wheelchair - scooter controller charger (XLR or Canon type)

Invacare 8 Amp Battery Charger for Power Wheelchair / Scooter
EYL1123249, 1123249, WS230-1A
