24V 8A Battery Charger for Power Wheelchair / Scooters

The 24V 8A Battery Charger for Power Wheelchair / Scooters is fully automatic and will work with ALL wheelchairs and scooters using an XLR connector.

Product Features

• Featuring a microcomputer controlled design with fully automatic operation - just plug it in
• 8 amp (8A) output provides fast efficient charging
• Multi LED lights show charging status
• Metal housing for extra durability
• No fan means ultra quiet long lasting charger design
• Charger can be be free standing or wall mounted
• Standard XLR pin connector fits a variety of wheelchairs and scooters from all the major brands
• Sold individually (each)

Fitment Notes:
The XLR pin connector is standard on many electric wheelchairs and scooters from Invacare, Permobil, Pride, Quantum, Quickie, Merits, Pacesaver, and more. Please refer to the image above to confirm your wheelchair or scooter uses this XLR-style connector. This charger is compatible with 24V systems (two batteries) using gel cell lead-acid batteries rated from 26 to 100 amp hours. For use with a 120V (110V) AC household power supply only.

Product Specifications:

• Input voltage range: 110-120 volts AC @ 60Hz
• Input current: 3.4 Amps @120 volts AC @ 60hz
• Charging current: 7.7 Amps @ 27 volts nominal
• Main power cable length: 8 ft. (2.44m)
• Charging cable length: 4.92 ft. (1.5m)
• Output connector: standard male 3 pin power wheelchair - scooter controller charger (XLR or Canon type)

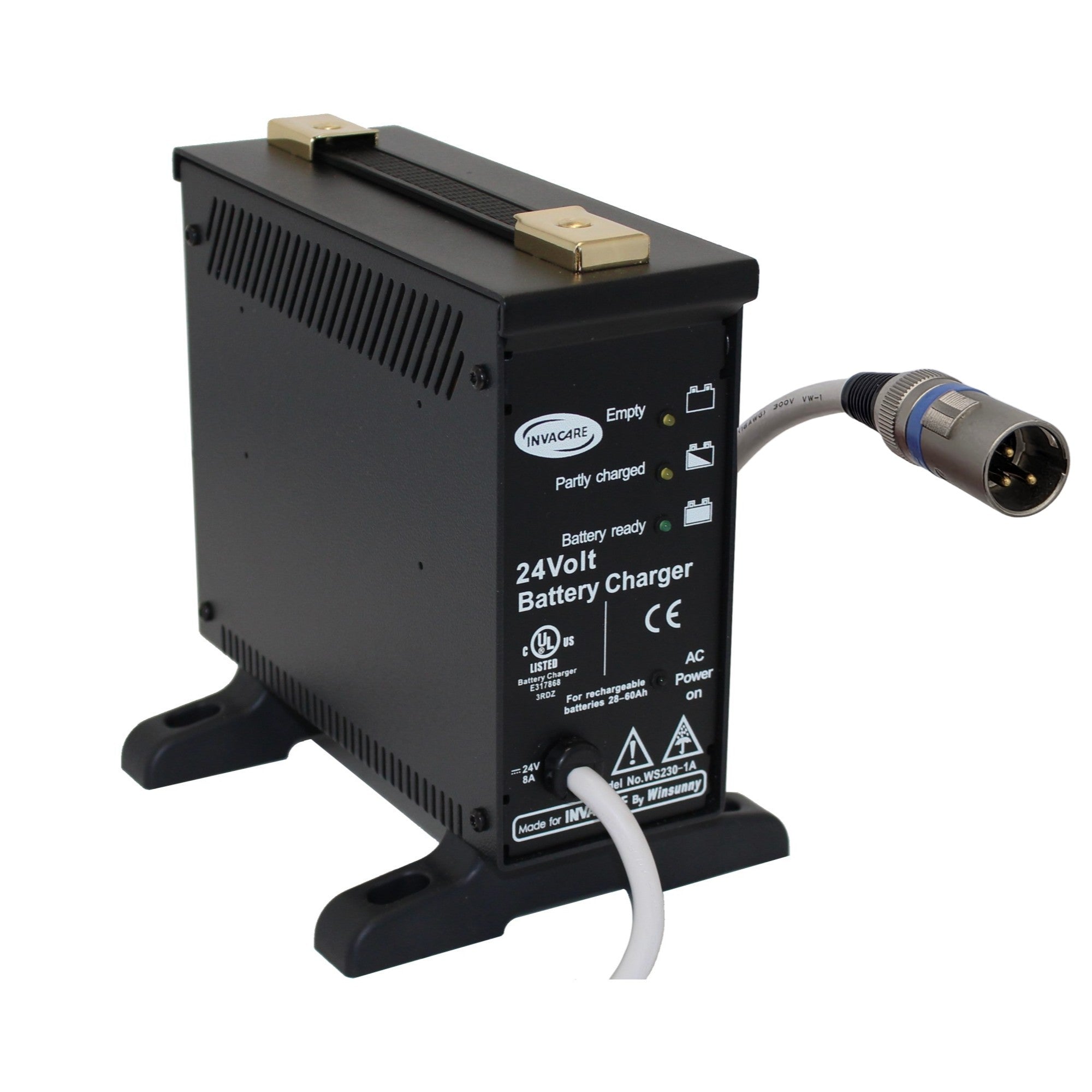

Invacare 8 Amp Battery Charger for Power Wheelchair / Scooter
EYL1123249, invacare 1123249, WS230-1A, 8a
