Embossed Vinyl Seat Back Upholstery for Invacare and Compatible Wheelchairs

The Embossed Vinyl Seat Back with 5 in. Center Bolt Pattern for Invacare and Compatible features 1/4' of foam padding for comfort, installs in minutes, and fits many manual wheelchairs from Invacare (including the Invacare Tracer), plus Medline, Drive, Theradyne, JAC, Sunmark, and Evermed.

Product Features

• Features approx. 1/4 in. foam padding for comfort

• Made from durable embossed vinyl

• 18 in. high with 5 widths to choose from (16", 18", 20", 22", 24")

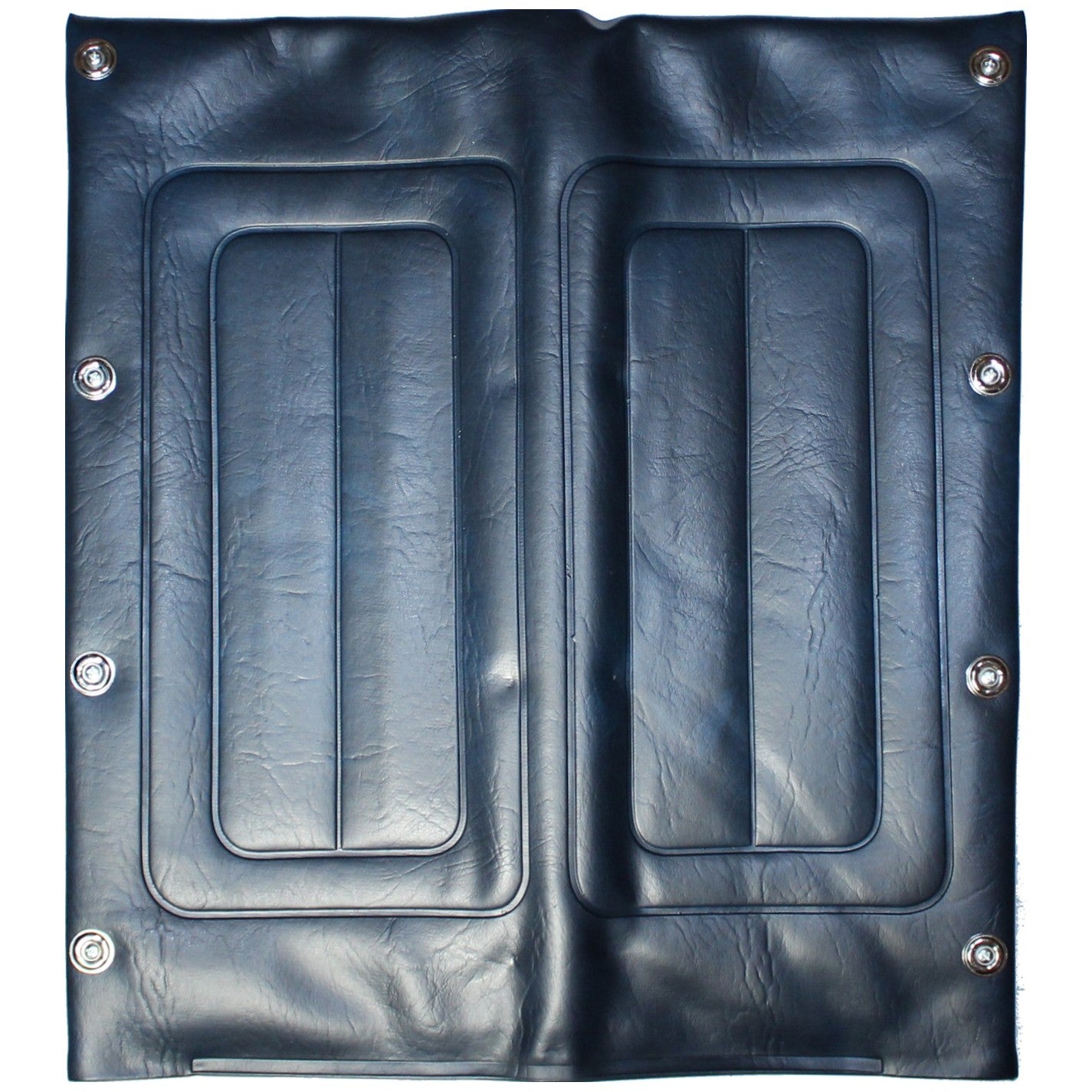

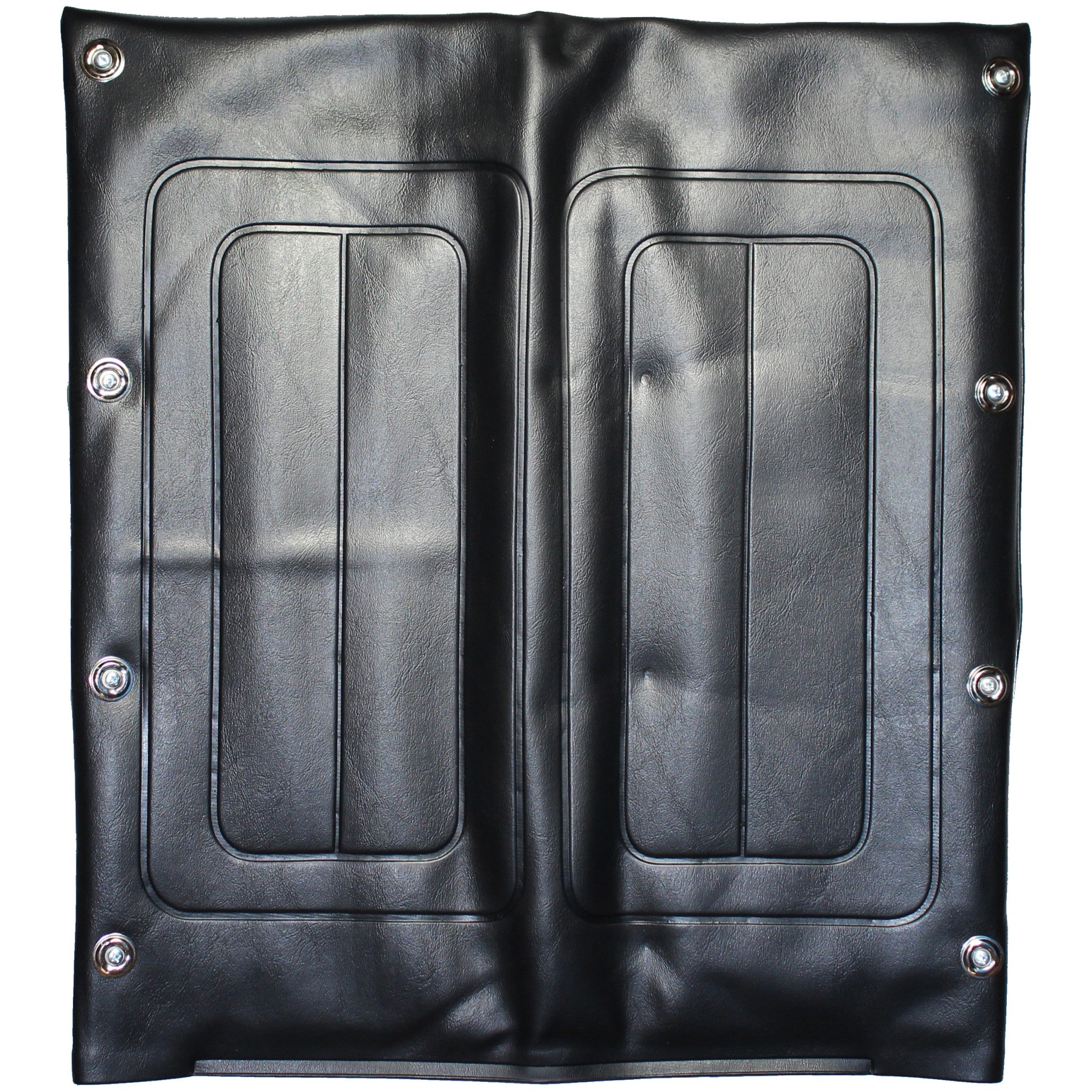

• Available in black or Invacare blue

• Hardware included
• Sold individually (each)

Fitment notes:
The Embossed Vinyl Wheelchair Seat Back for Invacare and Compatible fits many manual wheelchairs from Invacare (including the Invacare Tracer, Invacare 4000 - after 1989), Medline, Drive, Theradyne, JAC, Sunmark, and Evermed. Available sizes for this wheelchair seat back are 16" wide x 18" high, 18" wide x 18" high, and 20" wide x 18" high, 22" wide x 18" high and 24" wide x 18" high. Select the correct size and color when adding to the shopping cart.

Choosing the right wheelchair upholstery size

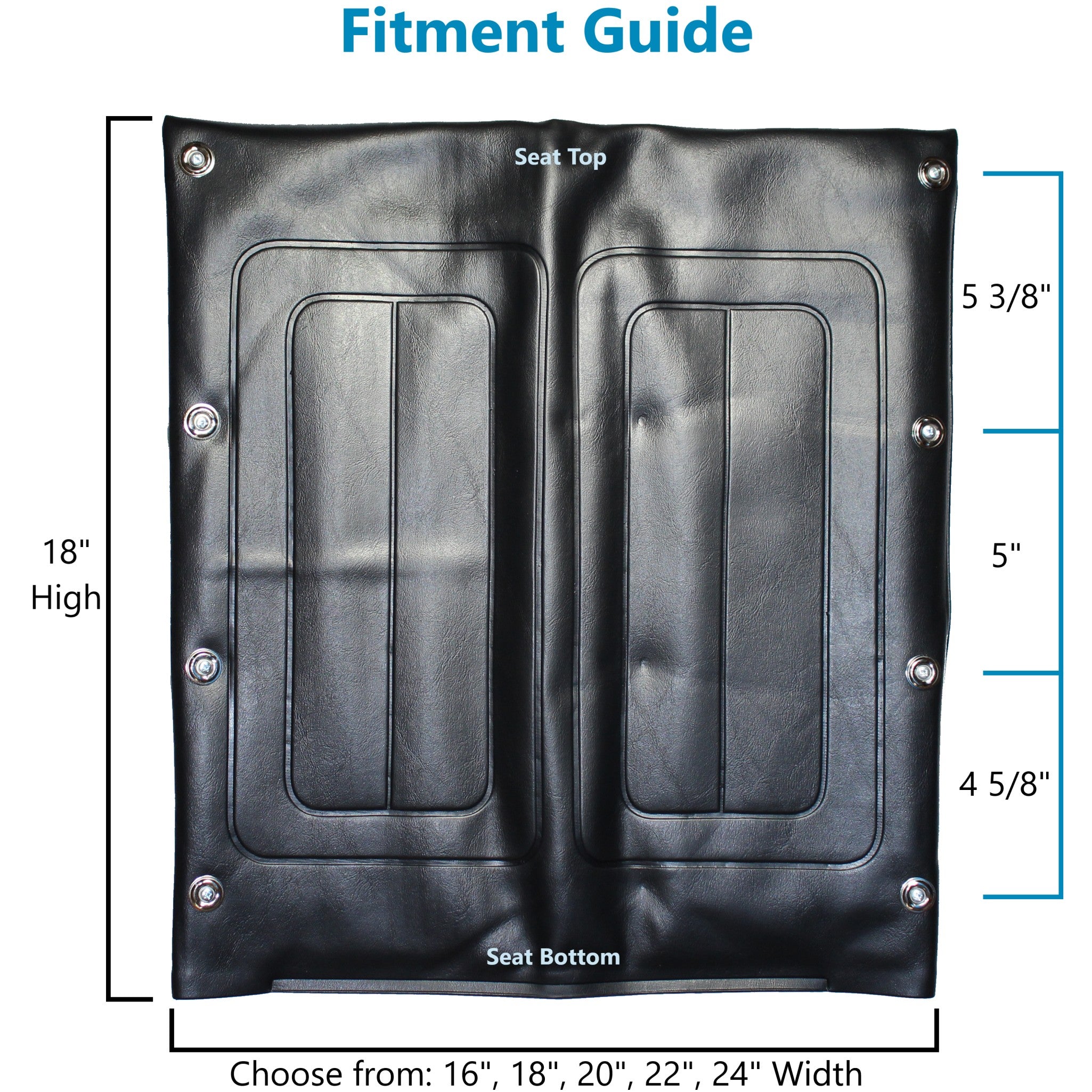

All you need is the width, depth or height, and the hole spacing. Measure the width of your wheelchair seat with the wheelchair completely unfolded. For the wheelchair seat, note the depth and for the wheelchair seat back, note the height. Next measure the distance between the holes that secure the seat or back (measuring from hole center to hole center). See image below.

Installation Tips
Fold up the wheelchair seat slightly to reduce the tension on the upholstery. Unscrew the existing vinyl seat and pull off. Re-install new vinyl wheelchair seat with provided screws and grommets. It is normal for the upholstery to feel a little firmer once the wheelchair is unfolded as it is new unworn vinyl.

Embossed Vinyl Seat Back Upholstery for Invacare and Compatible Wheelchairs
DIYUB431, DIYUBV451, DIYUBV471, DIYUB461, DIYUB481
DIYUBV438, DIYUB458, DIYUBV478, DIYUB468, DIYUB488
