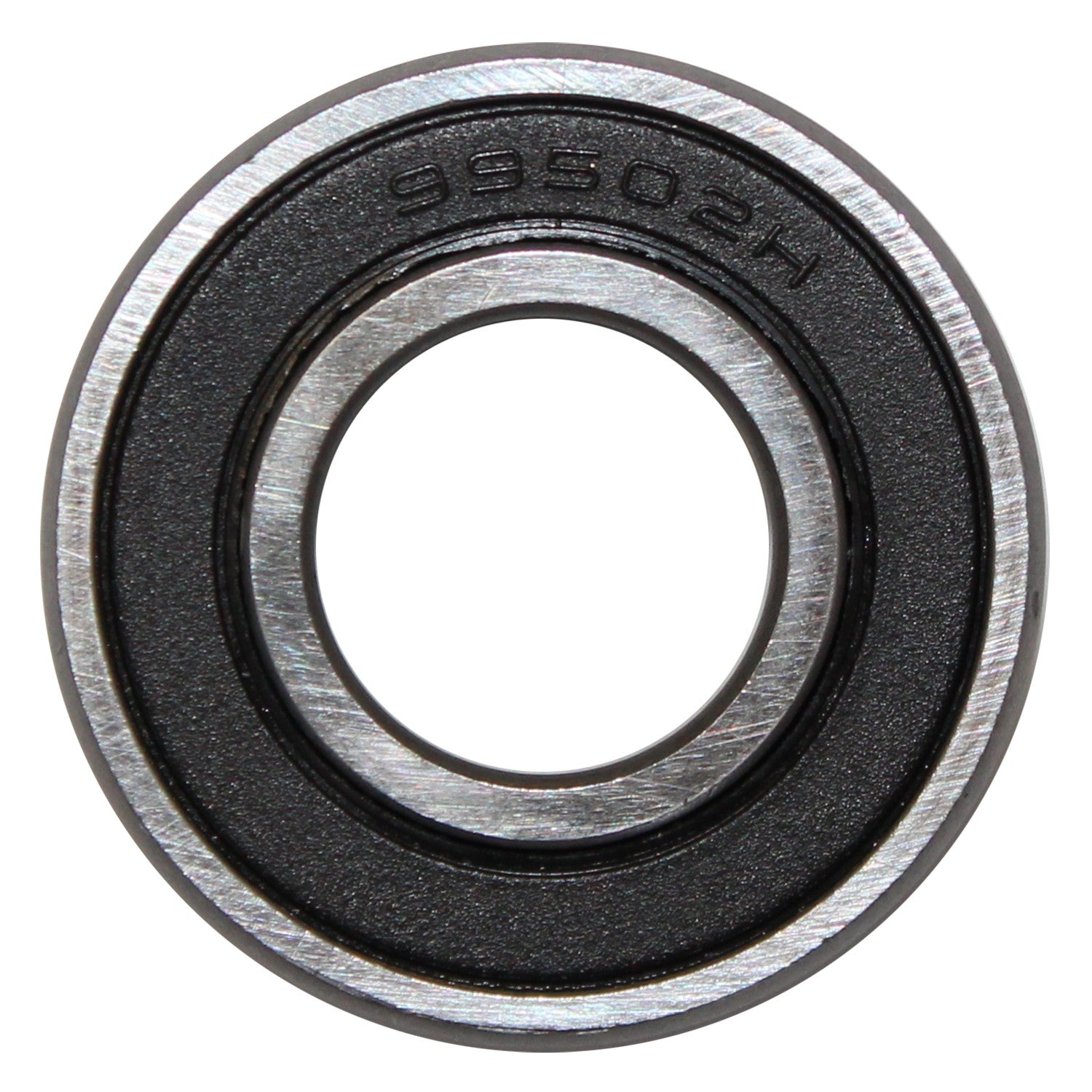

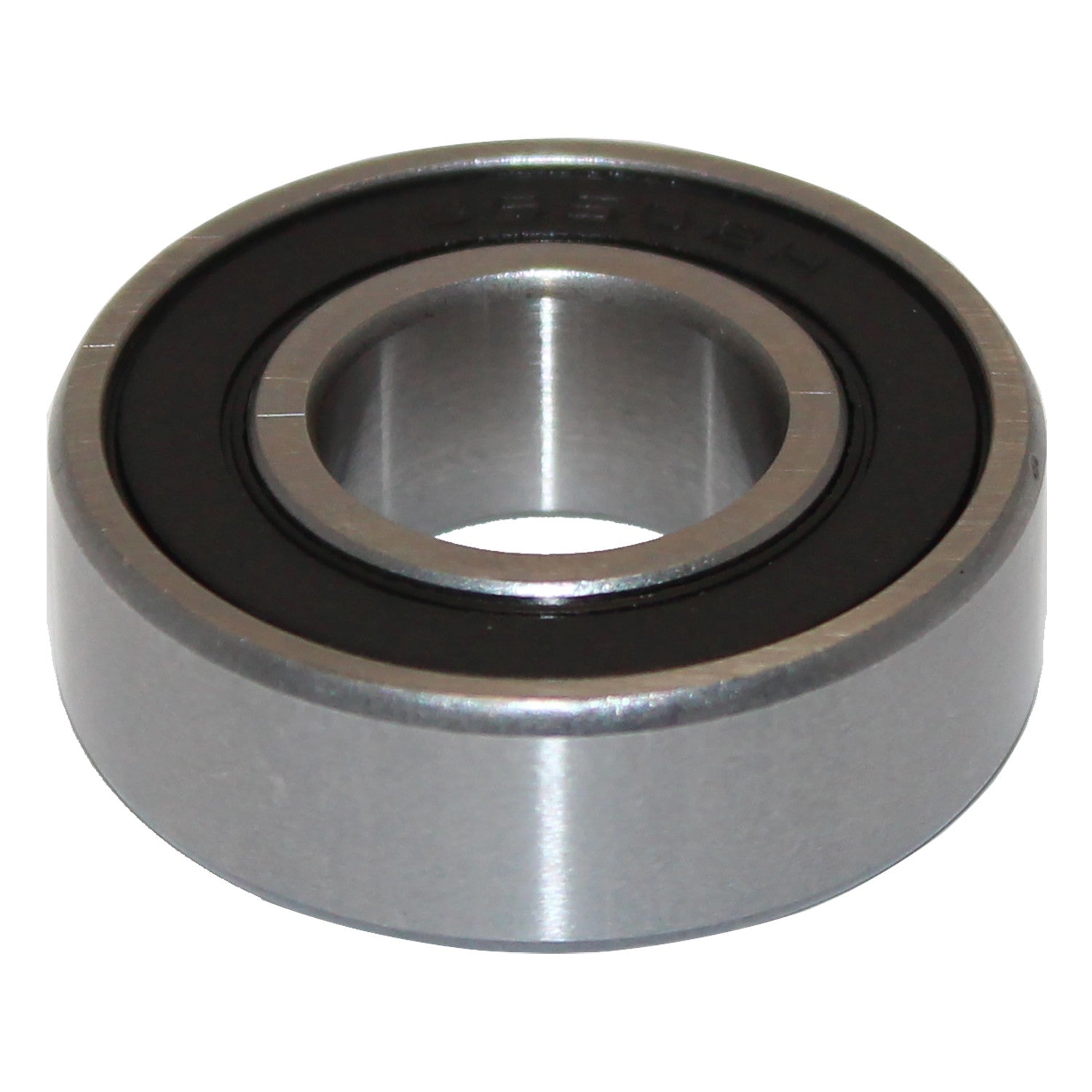

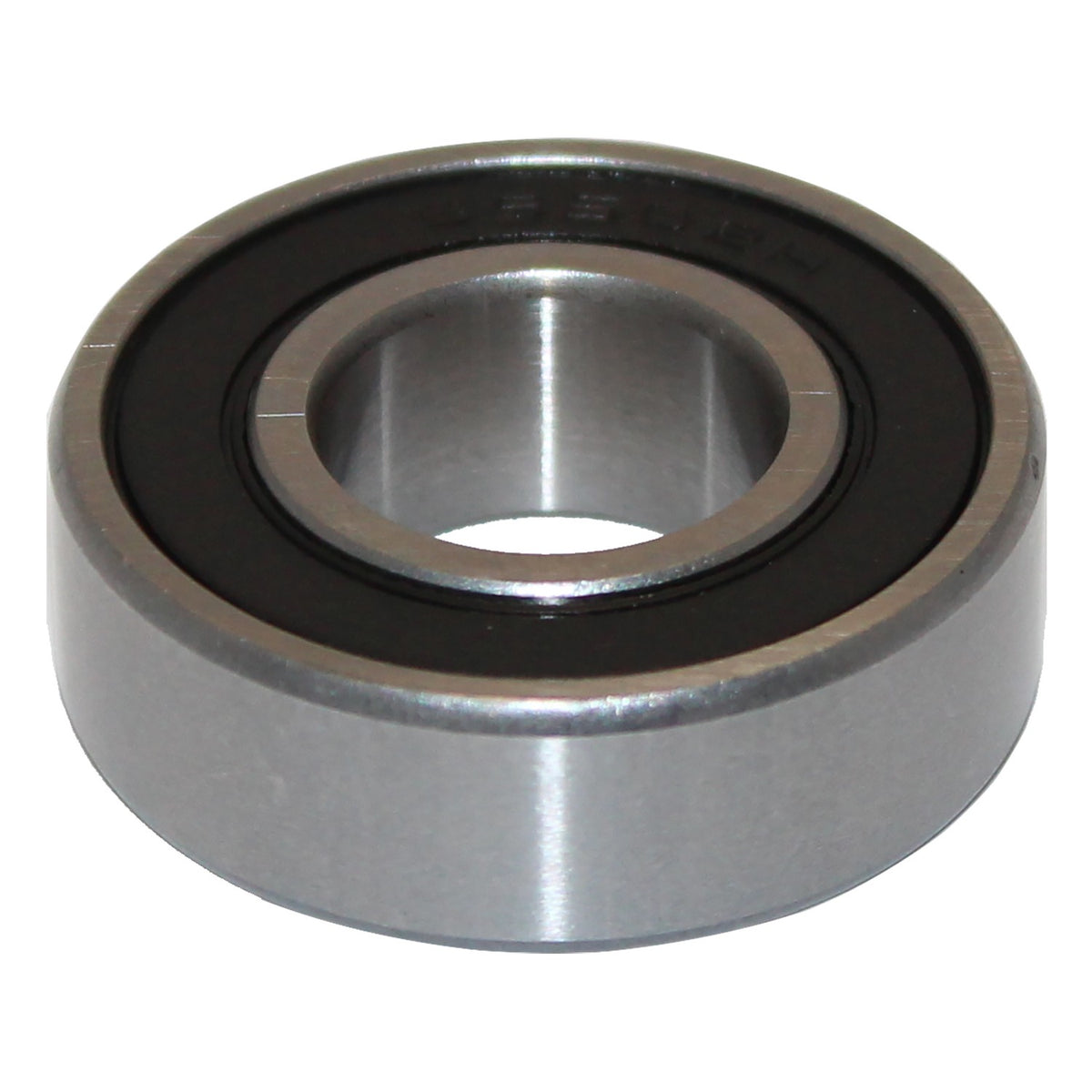

99502H Precision Wheelchair or Scooter Bearing (5/8 x 1 3/8 in.)

The 99502H Precision Wheelchair or Scooter Bearing is used on power and mobility wheelchairs. Commonly used in the fork stem, caster wheels and rear wheels.

Product Features

• Maintenance free design and pre-greased

• High quality double shielded design keeps grease in and contaminants out

• Replacement for bearing reference number 99502H
• Inside Diameter (bore) 5/8" (.625)

• Outside Diameter 1 3/8" (1.375)

• Width (Thickness) 7/16" (.4375)

• Sold individually (each)

Fitment Notes:
Generally used as a caster fork stem, caster wheel, and rear wheel bearing on a variety of power and manual wheelchairs. It may fit other wheelchair applications. Used on the caster fork stem, caster wheel bearing, and rear wheel on several Invacare wheelchairs, plus some heavy duty rear wheels on manual wheelchairs including the Invacare Tracer IV, and Invacare Topaz.  It is also used as the inside bearing on the 6 x 2 caster assembly with offset bearings that Invacare uses on the TDX wheelchair with the single sided caster fork. Your existing bearing should have the alpha numeric numbers stamped on the shield of the bearing: 99502H. This bearing is also used on non-wheelchair related equipment.

• Invacare 3G Storm Series Arrow

• Invacare 3G Storm Series Ranger X

• Invacare 3G Storm Series Torque SP

• Invacare AVIVA FX

• Invacare Excel FWD 250

• Invacare Nutron R32
• Invacare Nutron R32LX

• Invacare Nutron R50LX

• Invacare Nutron R51 / R51LX / R51LXP

• Invacare P9000 XDT

• Invacare Power Tiger

• Invacare Pronto M41 with SureStep

• Invacare Pronto M50 with SureStep

• Invacare Pronto M51 with SureStep

• Invacare Pronto M61 with SureStep

• Invacare Pronto M71 Jr. with SureStep

• Invacare Pronto M71 with SureStep

• Invacare Pronto M91 with SureStep

• Invacare Pronto M94 with SureStep

• Invacare Pronto R2

• Invacare Ranger II MWD

• Invacare Tracer EX2
• Invacare Tracer EXI
• Invacare Tracer IV
• Invacare Tracer SX5
• Invacare TDX3

• Invacare TDX4

• Invacare TDX5
• Invacare 9000 Topaz

Equivalent Part Numbers:
This 99502H Precision Wheelchair or Scooter Bearing can be used as a replacement for the following manufacturer part numbers:

• Invacare 40117X006

• TAGRP255003PK
• Ki Mobility 200528
• And many others

Invacare Chair Compatibility:
This 99502H Precision Wheelchair or Scooter Bearing is found on the following Invacare as well as used by many other wheelchair manufacturers:

General Wheelchair and Scooter Bearing Notes:
Many bearings found on wheelchairs and scooters have a alpha numeric reference or just a numeric reference number stamped on the side of the bearing which refers to the type and size of the bearing. In most cases, that is all you need to purchase the correct bearing. For alpha numeric reference numbers ending in Z, ZZ, RS, or 2RS, they are all interchangeable (Z and ZZ refer to a metal outer side shield and RS and 2RS refer to a rubber outer side shield protecting the balls inside the bearing). If your bearing has no reference on it, you will have to measure. If the bearing reference appears worn off, you may be able to see it stamped on the other side. Click the "Fitment" tab for more information on how to identify or measure your bearing.
