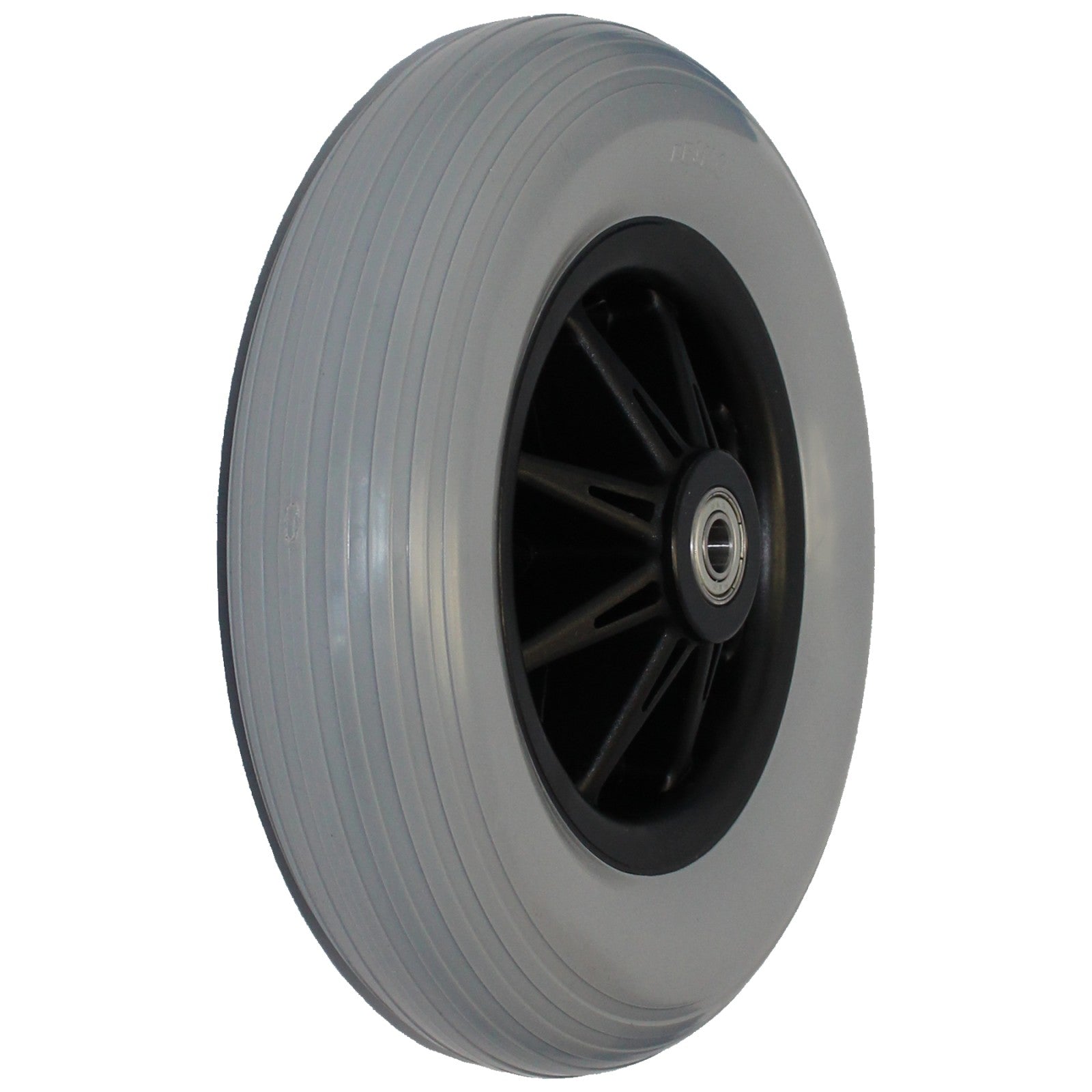

Angled view of the 8 x 2 in. (200x50) Anti-Tip Caster Wheel Assembly for Jazzy and Quantum Wheelchair shown

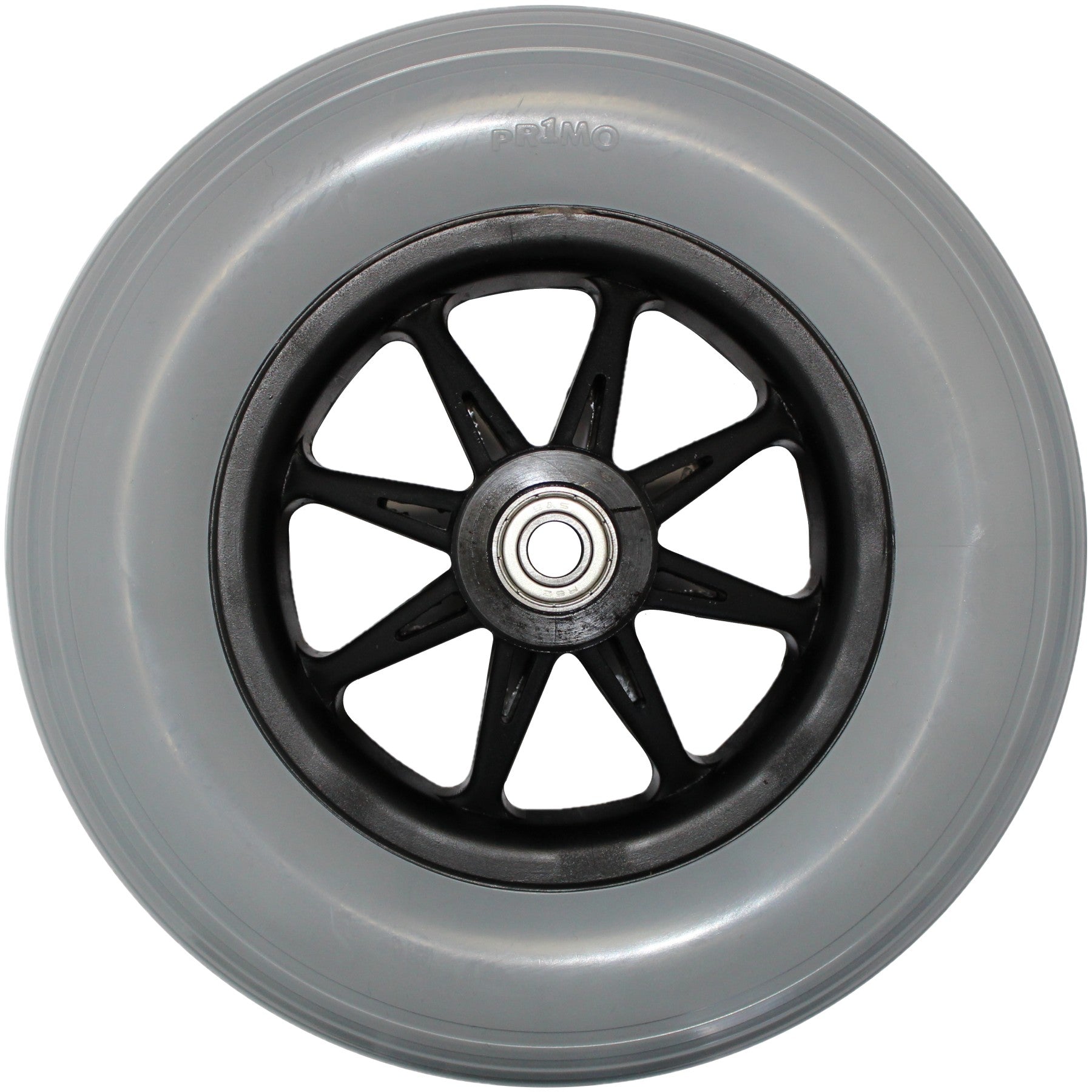

Side view of the 8 x 2 in. (200x50) Anti-Tip Caster Wheel Assembly for Jazzy and Quantum Wheelchair showing fully assembled with bearing

8 x 2 in. (200x50) Caster Wheel Assembly with 3/8 in. Bearing for Jazzy and Quantum

SKU: DIYCW1334
Availability: In Stock
$48.95
$48.95

Angled view of the 8 x 2 in. (200x50) Anti-Tip Caster Wheel Assembly for Jazzy and Quantum Wheelchair shown

8 x 2 in. (200x50) Caster Wheel Assembly with 3/8 in. Bearing for Jazzy and Quantum

$48.95

8 x 2 in. (200x50) Caster Wheel Assembly with 3/8 in. Bearing for Jazzy and Quantum

$48.95

The 8 x 2 inch (200 x 50) Anti-Tip Caster Wheel Assembly is a replacement wheel designed for select Pride Mobility Jazzy and Quantum power wheelchairs. It features a solid urethane tire with a ribbed tread, a durable eight-spoke black plastic rim, and precision bearings with a 3/8-inch inner diameter.

The flat-free tire requires no inflation, providing a low-maintenance replacement for a worn or damaged anti-tip caster wheel. The assembly comes fully assembled and ready to install.

Product Features

  • Wheel Size: 8 x 2 inches (200 x 50)
  • Tire Type: Solid molded urethane
  • Tread Pattern: Ribbed
  • Tire Design: Flat-free; no air inflation required
  • Wheel Rim: Eight-spoke black plastic
  • Hub Width: Approximately 2 3/8 inches
  • Bearings: Precision R6Z bearings with 3/8-inch inner diameter
  • Installation: Fully assembled and ready to install
  • Application: Anti-tip caster wheel and caster wheel assembly
  • Pride Mobility Part Number: WHLASMB1334
  • Sold individually (each). For a pair, order quantity 2


Fitment Notes:
This caster wheel is used as an anti-tip caster on the following Pride models:

  • Quantum 1420 (Gen 6)
  • Quantum 1424 (Gen 6)
  • Quantum 1470 (Gen 6)
  • Quantum 1650
  • Jazzy 1170 XL
  • Jazzy 1170 XL Plus
  • Jazzy 1143 On or after 8-31-01 (anti tip)
  • Jazzy 1143 Ultra
  • Jazzy 1420
  • Jazzy 1470
  • Jazzy 1650


Check Your Caster Before Order:
Pride wheelchairs may be equipped with different caster configurations, so we recommend measuring your existing caster before ordering. Verify both the hub width and bearing size, even if the wheel size is marked on your existing caster.

If your Pride wheelchair uses a 5/16 in. bearing, see our alternative: 8 x 2 in. (200 x 50) Caster Wheel with 5/16 in. Bearing.

Measuring Your Existing Wheelchair Caster:
Replacing a wheelchair caster starts with measuring your existing wheel. Measure the wheel diameter, tire width, hub width, and bearing inner diameter to ensure the replacement caster matches your existing setup.

If you have questions about which wheelchair caster to purchase, how to determine the correct size, or an installation question, visit our Buying Guide for Wheelchair Caster Wheels.

We accept returns within 30 days of delivery. For more information, check out our full returns policy.
