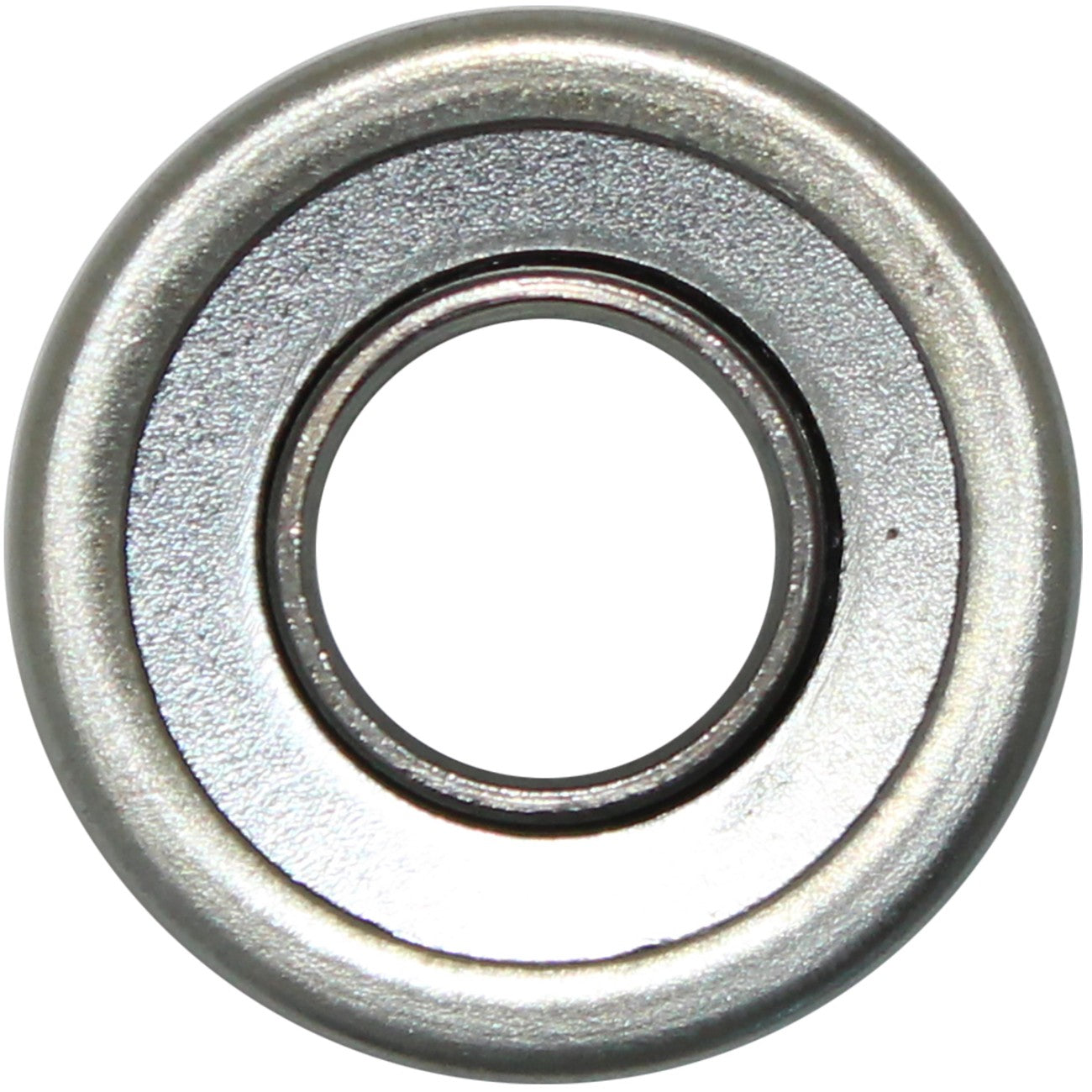

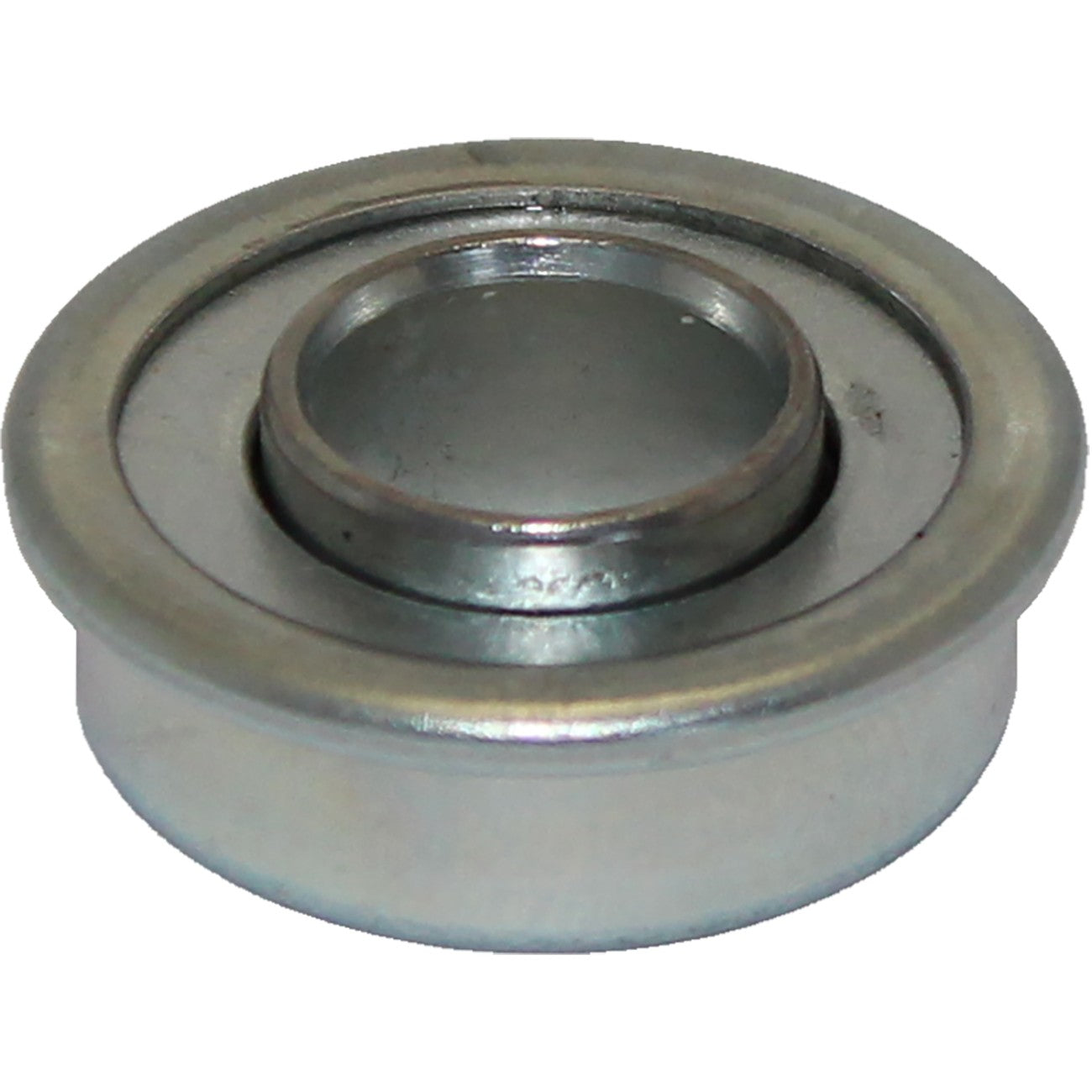

The 7162932 Flanged Wheelchair or Scooter Bearing (7/16 x 29/32 in) is commonly used on manual wheelchair caster wheel assemblies and features a maintenance free design.
Product Features
- Maintenance free design and pre-greased
- Reference number 7162932
- Inside Diameter (bore): 7/16"
- Outside Diameter: 29/32"
- Outside Diameter including flange: 1 1/32"
- Width (thickness): 3/8" (including slightly extended inner race)
- Sold individually (each)
Fitment Notes:

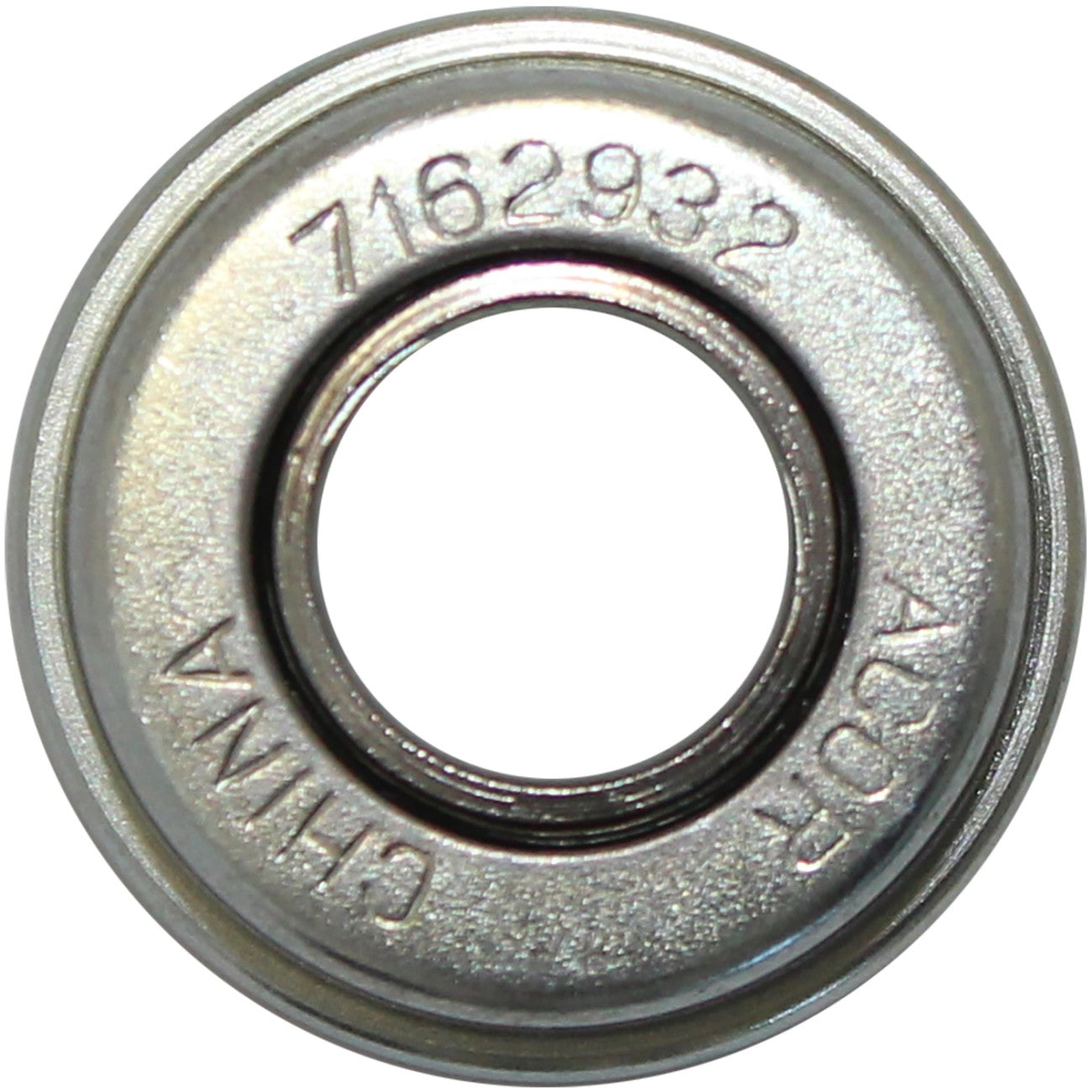

This bearing is commonly used on caster assemblies that use flanged bearings and have 7/16" axles. Each caster assembly takes two bearings. The flange is what holds it in place. The reference number is usually stamped on the back side meaning you'll have to remove the bearing to see it. If no reference number is present, you'll have to measure.
This bearing can be used as a replacement for the following manufacturer part numbers:
- Invacare 1010810
- Invacare TAGRP265005
General Wheelchair and Scooter Bearing Notes:
Many bearings found on wheelchairs and scooters have a alpha numeric reference or just a numeric reference number stamped on the side of the bearing which refers to the type and size of the bearing. In most cases, that is all you need to purchase the correct bearing. If your bearing has no reference on it, you will have to measure. If the bearing reference appears worn off, you may be able to see it stamped on the other side. Click the "Fitment" tab for more information on how to identify or measure your bearing.
Most wheelchair bearings are replaceable. Knowing the size of the bearing, reference number, and type of bearing can help you identify a replacement. When measuring your bearing, measure the following and compare it to the product description:
- Outer Diameter
- Inner Diameter
- Width
- Bearing reference number
