7/16 x 1 1/8 in. with Ext. Race 1615 Precision Wheelchair or Scooter Bearing number B150

7/16 x 1 1/8 in. with Ext. Race 1615 Precision Wheelchair or Scooter Bearing

SKU: B150
Availability: In Stock
$7.25
$7.25

7/16 x 1 1/8 in. with Ext. Race 1615 Precision Wheelchair or Scooter Bearing number B150

7/16 x 1 1/8 in. with Ext. Race 1615 Precision Wheelchair or Scooter Bearing

$7.25

7/16 x 1 1/8 in. with Ext. Race 1615 Precision Wheelchair or Scooter Bearing

$7.25

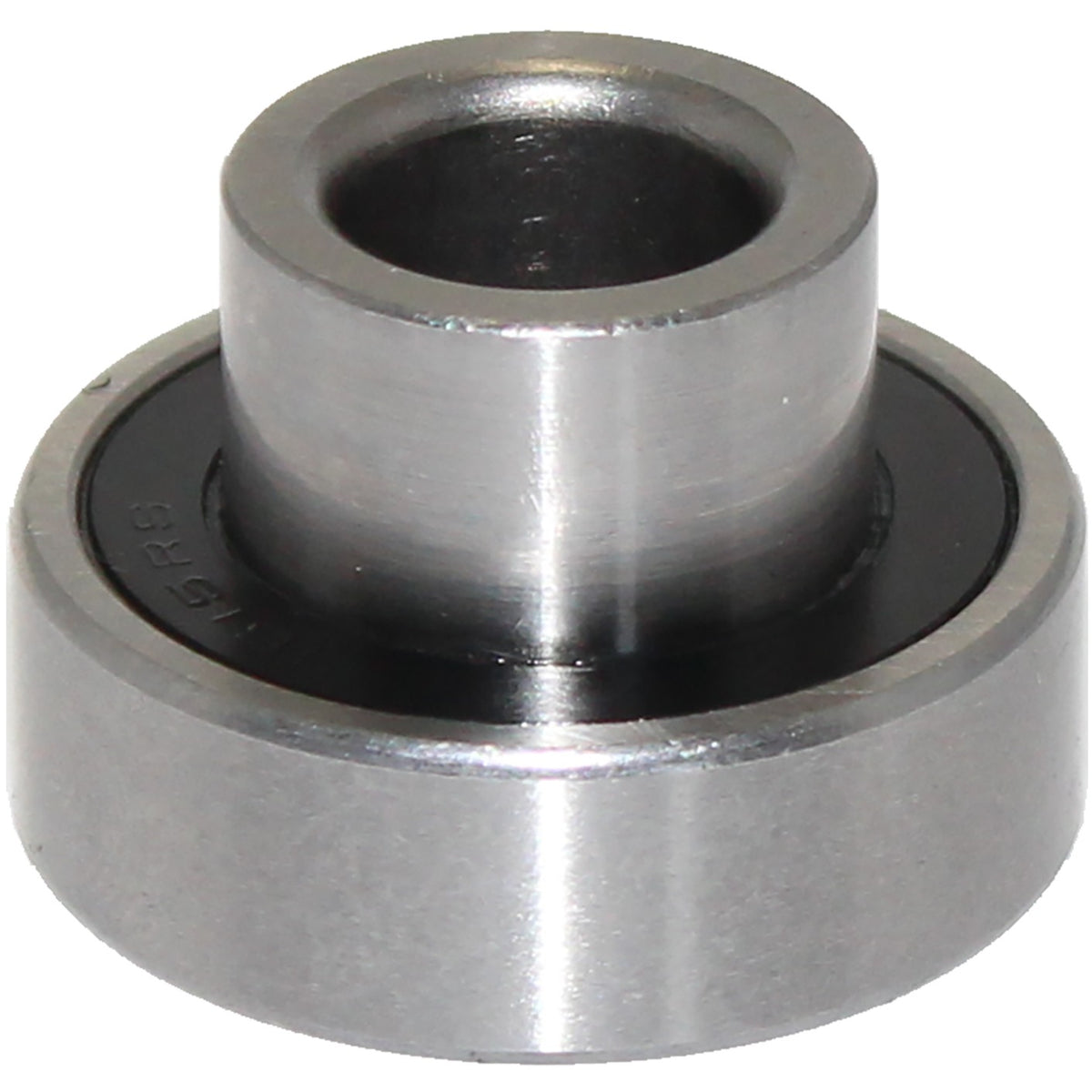

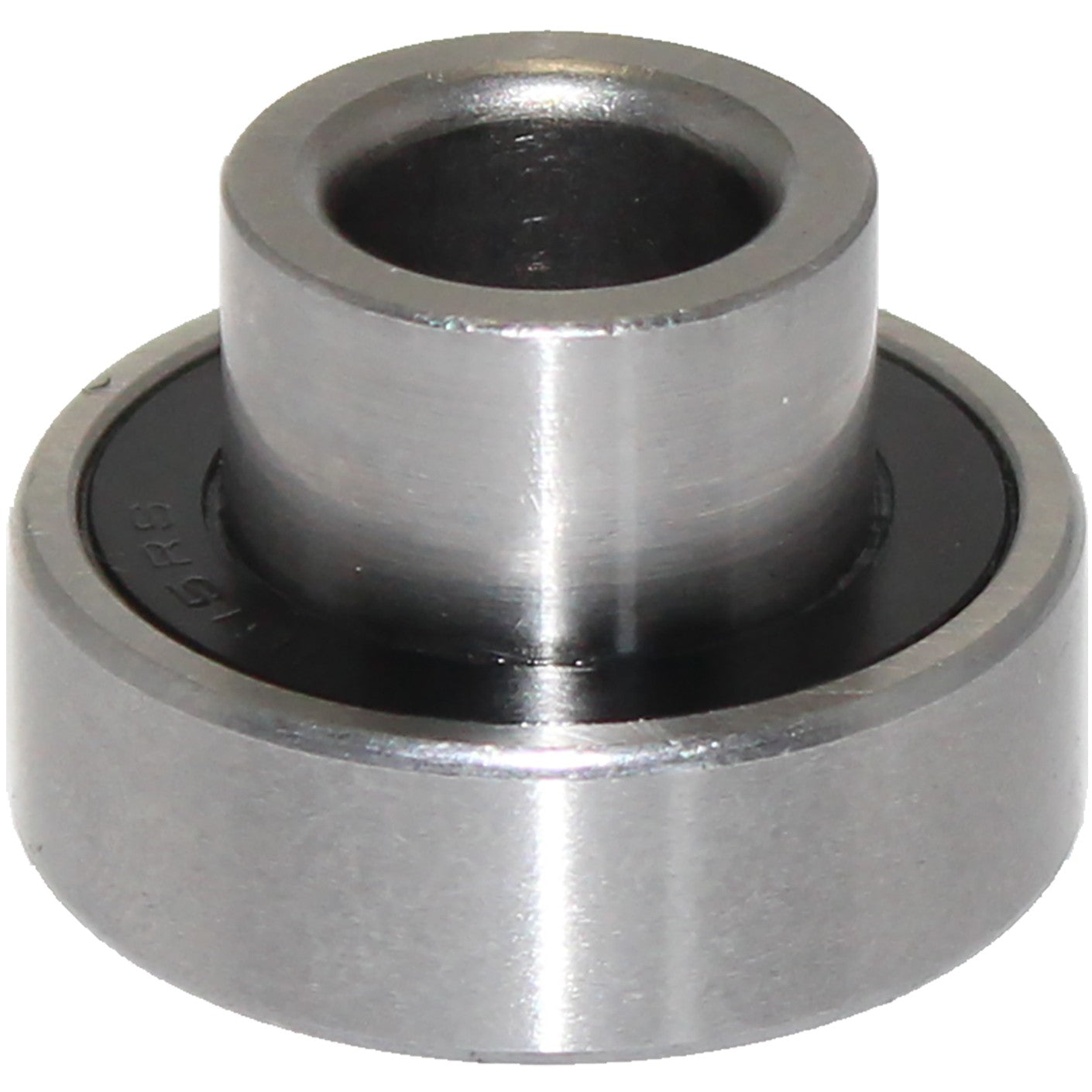

The 7/16 x 1 1/8 in. with Ext. Race 1615 precision wheelchair or scooter bearing features a design with a 3/8" extended race that is used as a spacer between the rear wheel and the frame of a manual wheelchair.

Product Features

  • Maintenance free design and pre-greased
  • High quality double shielded design keeps grease in and contaminants out
  • Replacement for bearing reference number 1615RS
  • Inside diameter (bore) 7/16" (.4375)
  • Outside diameter 1 1/8" (1.1250)
  • Width (thickness) 3/8" (.3750)
  • Width (thickness) including extended race 3/4" (.750)
  • Sold individually (each)



Fitment Notes

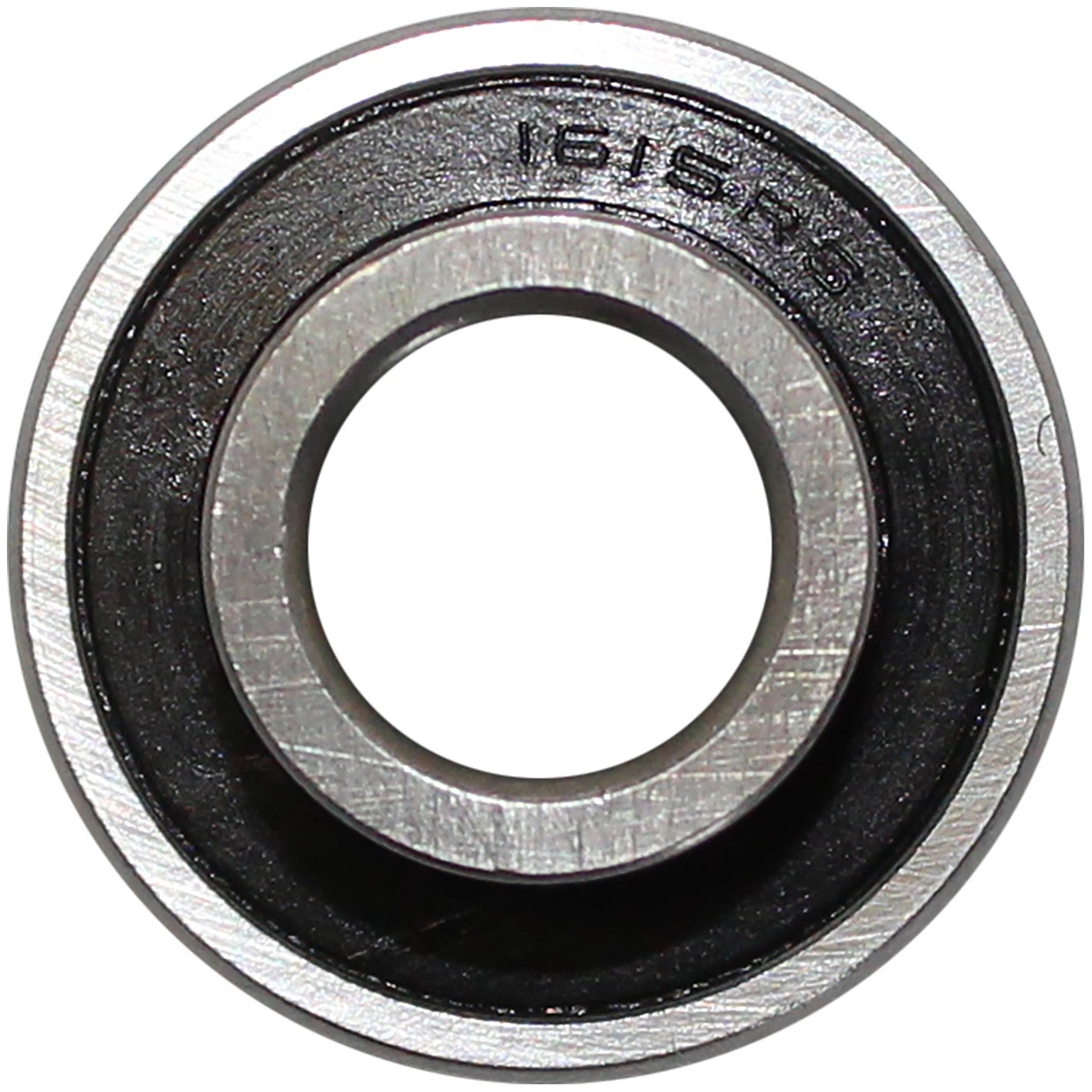

This bearing is used when adapting a performance rear wheelchair wheel to a standard manual wheelchair using 7/16" axles and a spacer between the wheel and the wheelchair frame. The extended race takes the place of the spacer. It may fit other applications when these dimensions are called for. Your existing bearing should have one of these alpha numeric numbers stamped on the shield of the bearing: 1615RS, 1615-2RS, 1615Z, 1615ZZ. Also verify you have the extended race.

General Wheelchair and Scooter Bearing Notes
Many bearings found on wheelchairs and scooters have a reference number stamped on the side of the bearing which refers to the type and size of the bearing. In most cases, that is all you need to purchase the correct bearing. If the bearing reference appears worn off, you may be able to see it stamped on the side of the bearing.
