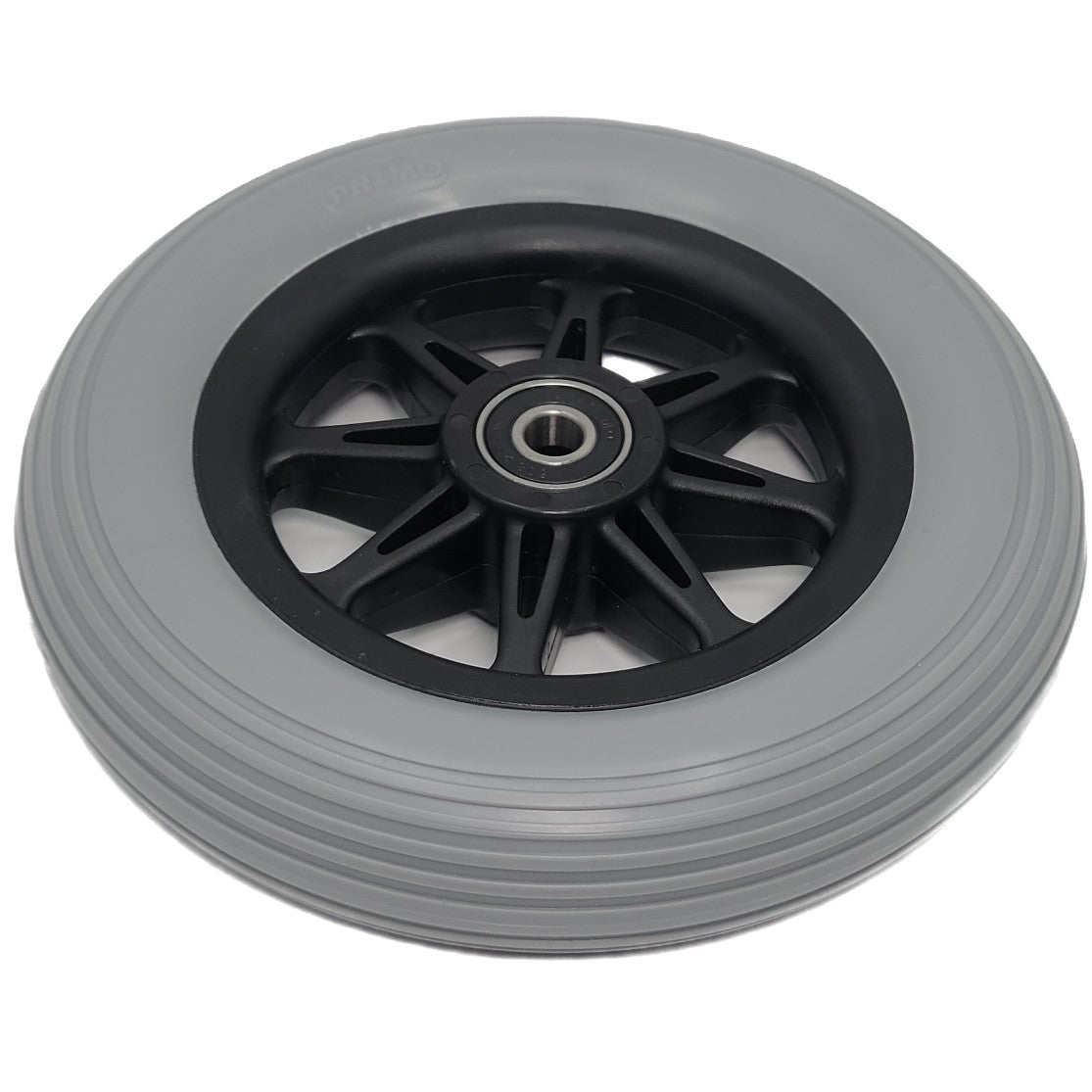

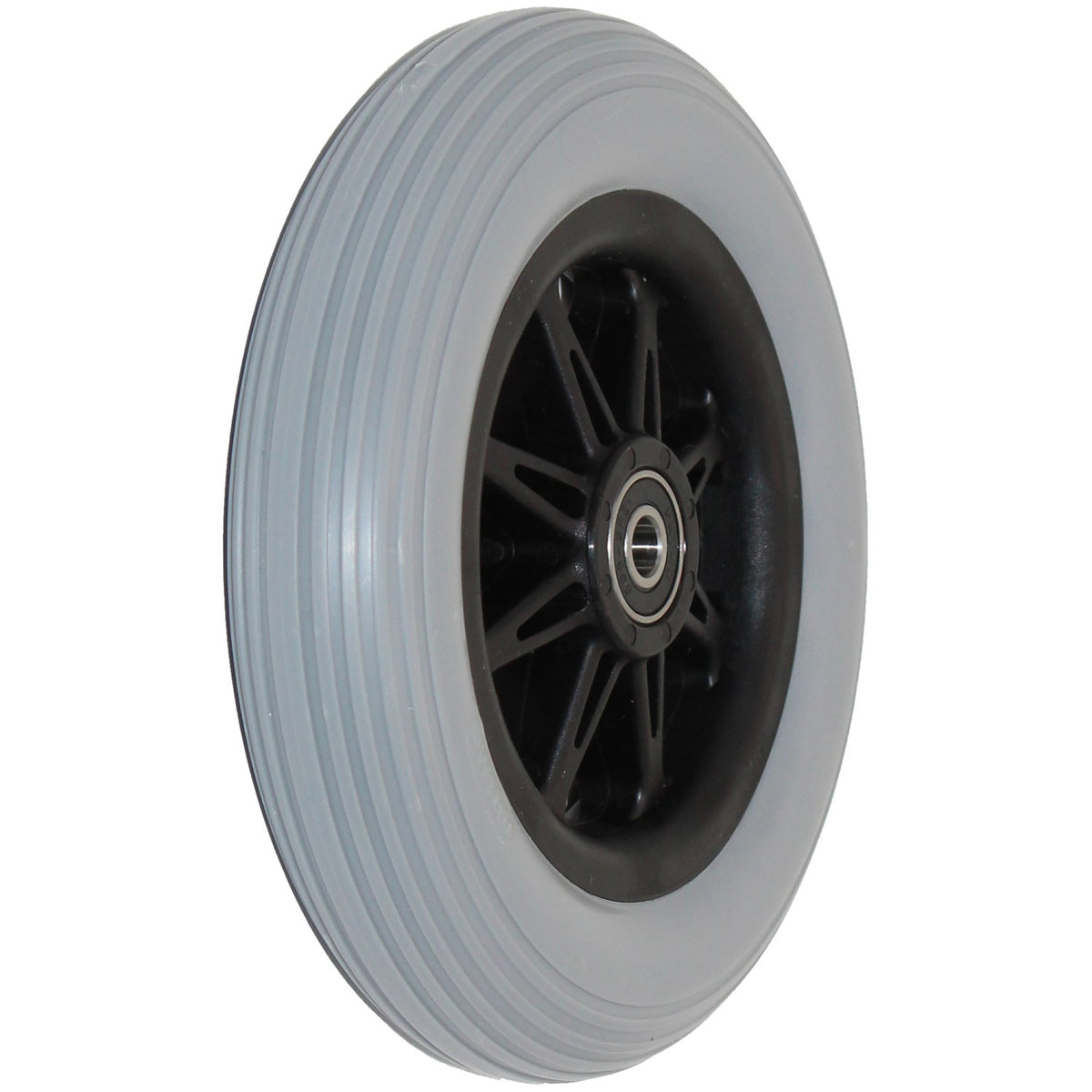

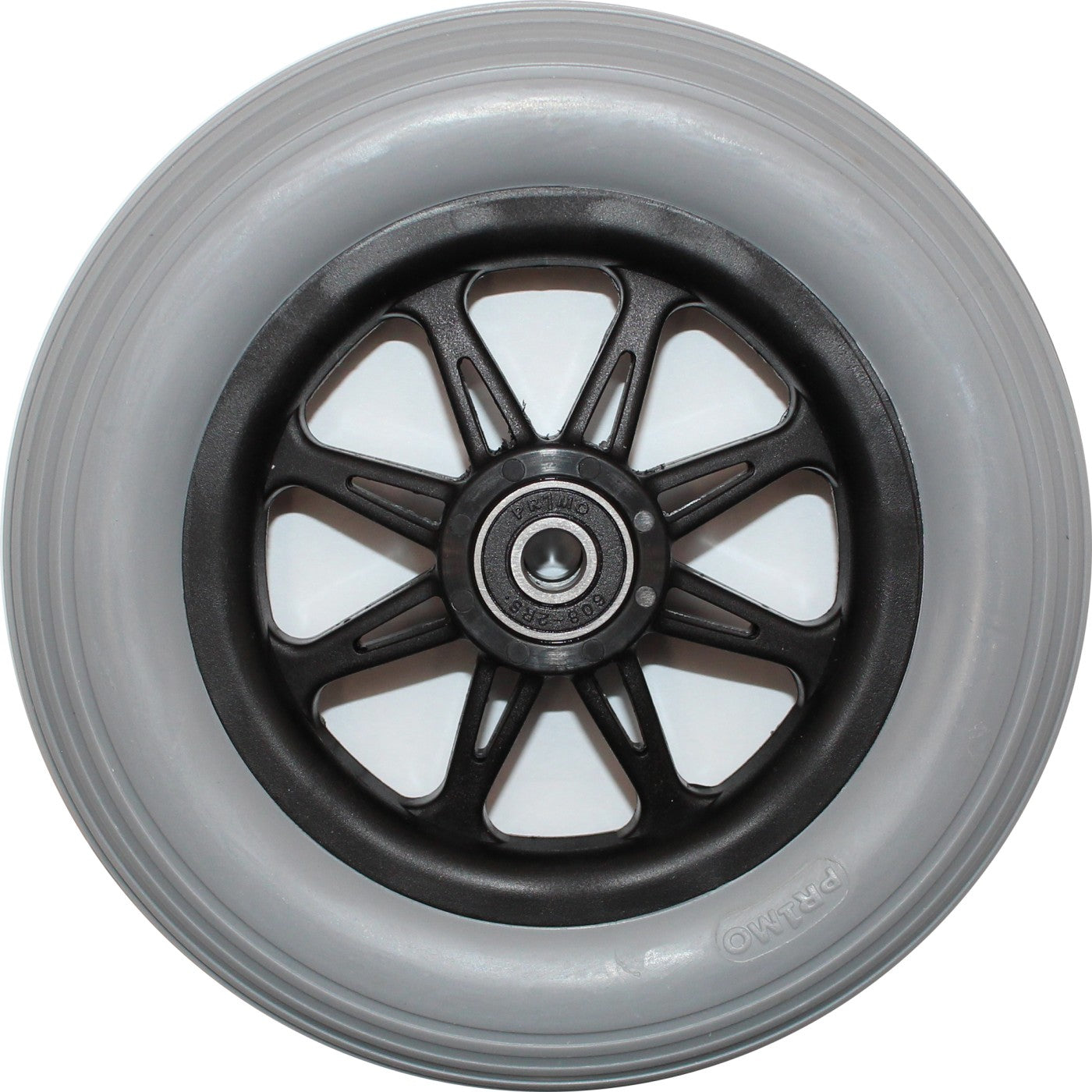

6 x 1 in. Eight Spoke Anti-Tip Caster Wheel for Pride Wheelchairs

The 6 x 1 in. Eight Spoke Anti-Tip Caster Wheel for Pride Wheelchairs is commonly found as the front caster on Jazzy, Jet, and Quantum power chairs. Comes assembled and ready to installed.

Product Features

• Replacement for Pride part number WHLASMB1284 and WHLATIP1001

• Molded on multi rib flat free urethane tire

• Hub width: 1 3/16"

• Bearings included: 5/16" precision 6082RS bearings (2 per wheel)
• Latex free
• Assembled ready to install
• Sold individually (each). For a pair, order quantity 2

Fitment Notes:
This caster is a known front anti-tip caster wheel replacement for the following Pride Mobility Wheelchairs:

• Dynamo 1114

• Quantum 1121

• Quantum 1122 - All

• Quantum 1400 (Gen 6)

• Quantum 1402

• Quantum Blast 650 (rear - All)

• Quantum Blast 850 (rear - All)

• Quantum Blast HD (rear - all)

• Quantum Blast X-treme (rear)

• Jazzy 1101

• Jazzy 1103 Mini

• Jazzy 1103 Ultra
• Jazzy 1104

• Jazzy 1105

• Jazzy 1113 Anti Tip To October 9, 2001

• Jazzy 1113 ATS

• Jazzy 1115 Gen 4

• Jazzy 1120

• Jazzy 1120-2000 Gen 6

• Jazzy 1121 / 1121 HD

• Jazzy 1122

• Jazzy 1133

• Jazzy 1143 Ultra

• Jazzy Select 14

• Jazzy Select 14 HD

• Jazzy Select 7
• Jet 1 anti tip

• Jet 1 HD

• Jet 10

• Jet 10-1

• Jet 12

• Jet 3-1

In addition, it may fit other wheelchairs from Pride not listed or wheelchairs from other brands Measure your existing caster wheel to be sure. Replacement for Pride Mobility part numbers WHLATIP1001 and WHLASMB1284.

Purchasing the proper wheelchair caster is as simple as measuring the old one. Even if the size is written on the existing caster, you still want to make sure the hub width and bearing size will be correct. Properly measuring will ensure you order the correct caster.

If you have questions about which wheelchair caster to purchase, how to determine the correct size, or an installation question, visit our Buying Guide for Wheelchair Caster Wheels.
