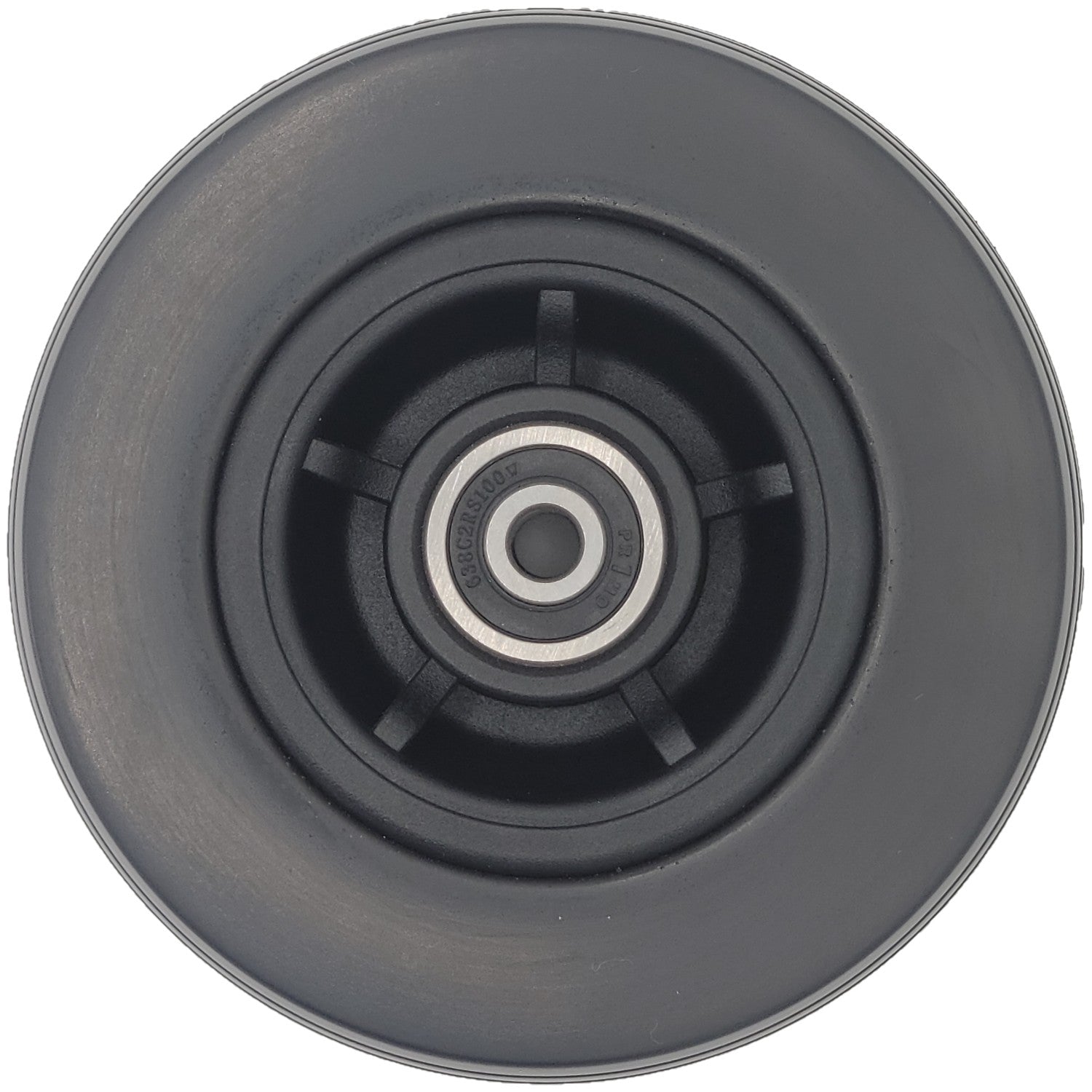

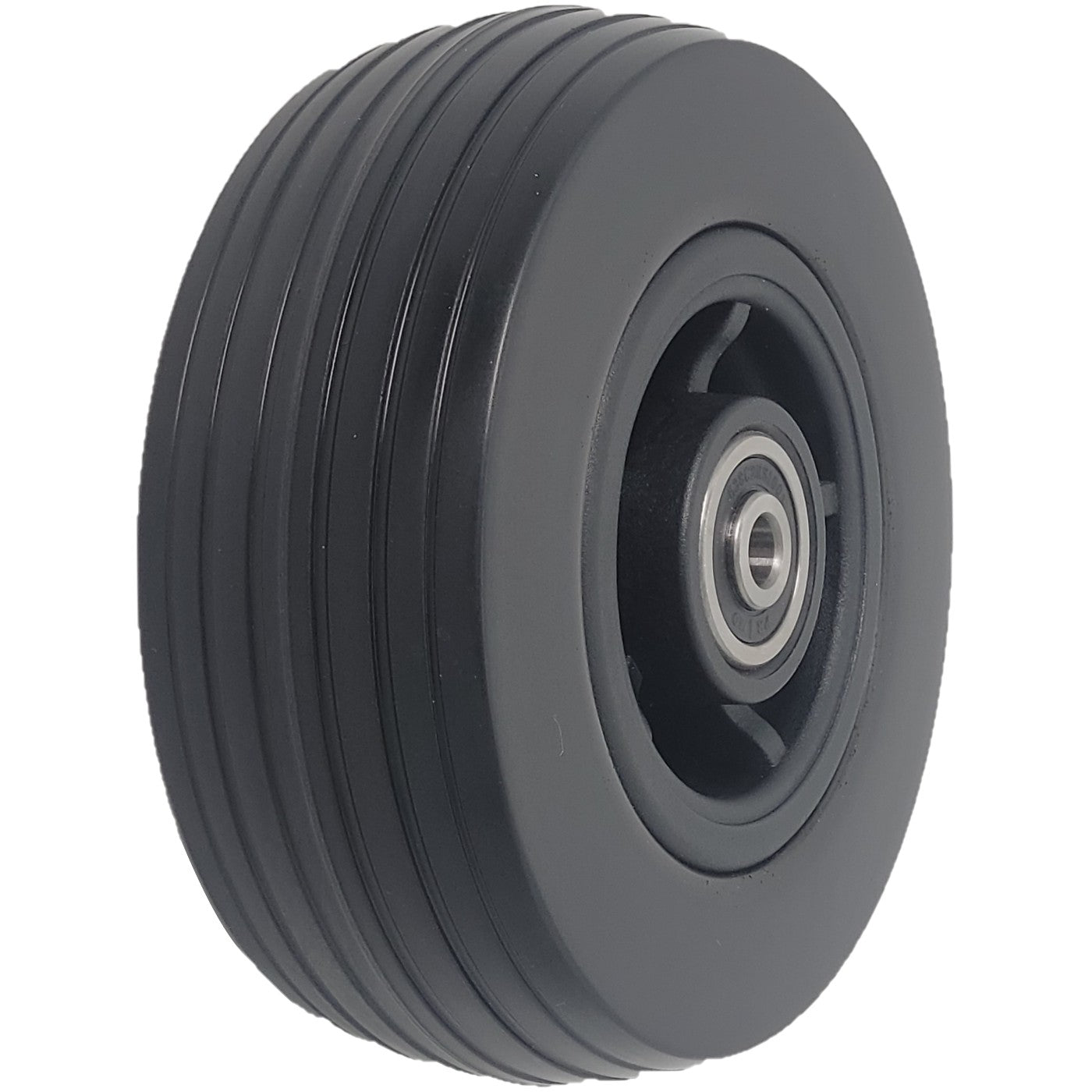

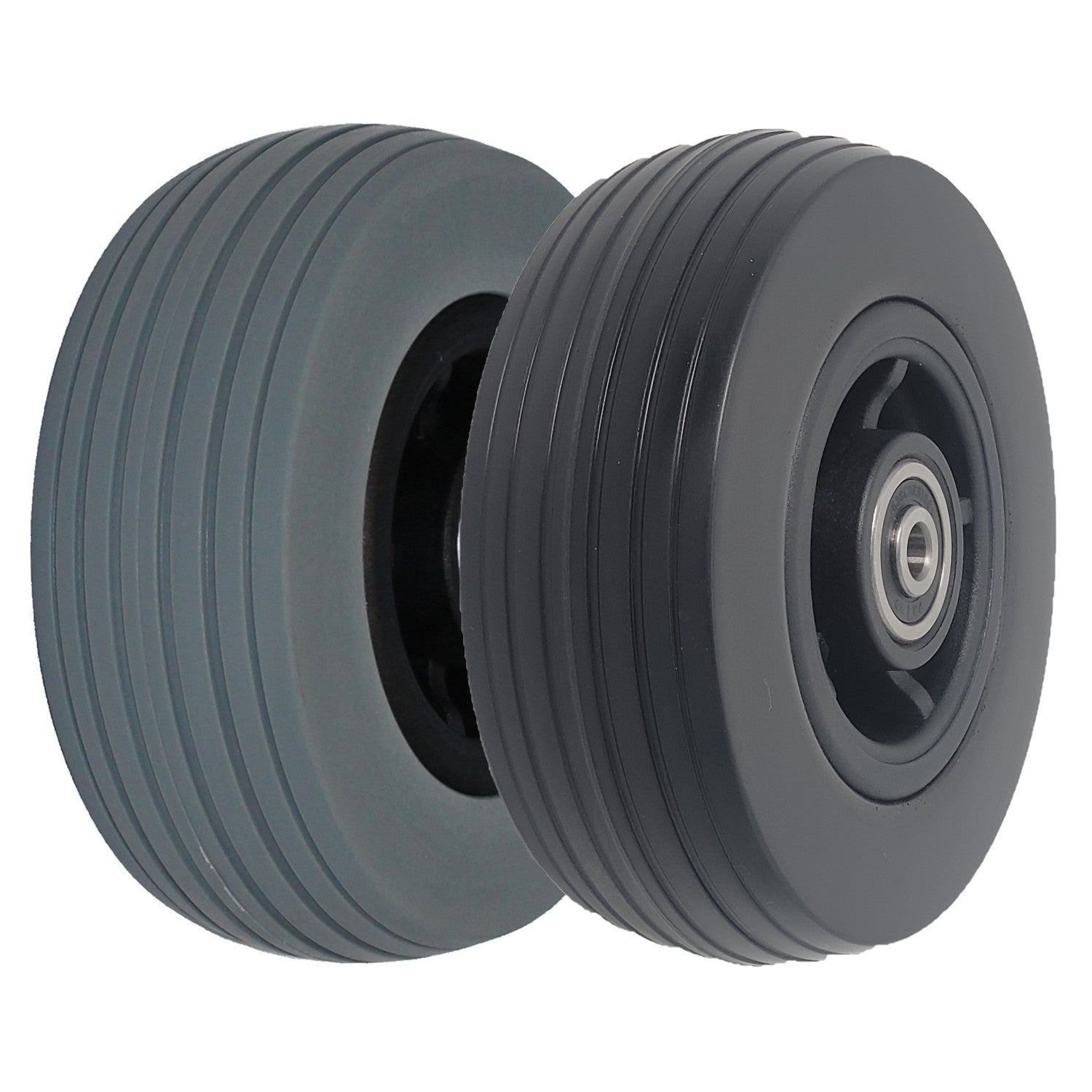

5 x 1 3/4 in. Pride Wheelchair Front Caster Assembly

The 5 x 1 3/4 in. Pride Wheelchair Front Caster Assembly was designed as a replacement anti-tip caster for many Pride Quantum and Jazzy wheelchairs (direct replacement for Pride part number WHLASMB1745) and features a smooth riding urethane tire that will never go flat and the user will never have to periodically fill them with air.

Product Features

• Used on many Pride wheelchairs as the anti tip caster wheel or as a caster wheel
• Flat free multi ribbed tread design urethane tire
• Hub width is 2 inches
• Bearings included: 8 mm precision bearings (638RS 2 per wheel)
• Sold individually (each). For a pair, please order a quantity of 2

5 x 1 3/4 in. Pride Wheelchair Front Anti Tip Caster Assembly Fitment Notes:
This wheelchair caster wheel fits the following Pride Quantum and Jazzy wheelchairs and is used as a caster wheel or anti-tipper wheel depending on your model:

• Quantum 6000XL
• Quantum 500 (Gen 2 Front)
• Quantum 600 (Version 1 & 2 with Glide or H2 Motors) - Front
• Quantum 600 XL (Version 2 Front)
• Quantum 6000 (Front - All colors and s/n)
• Quantum 6000 XL (Front - All colors and s/n)
• Quantum 600E (Front - Gen 1 on or after s/n J7808607001s10 )
• Quantum 610 (Front - Gen 2)
• Quantum 640 (Front - Version 2 H2)
• Quantum J6 Prior to s/n JB226214086020
• Jazzy J6 Prior to s/n JB226214086020
• Jazzy 600 SN on or after s/n J5608607001s10
• Jazzy 600 Group 2
• Jazzy 600 XL on or after s/n J5608607001s10
• Jazzy 610 on or after s/n J7408607001s10
• Quantum Edge 3 Stretto (Front)

In addition, it may fit other wheelchairs from Pride not listed, plus other wheelchairs needing this size caster wheel. Even if your model wheelchair is listed above, it is advisable to double check the the dimensions prior to ordering.

Measuring your existing wheelchair caster:
Purchasing the proper wheelchair caster is as simple as measuring the old one. Even if the size is written on the existing caster, you still want to make sure the hub width and bearing size will be correct. Properly measuring will ensure you order the correct caster.

If you have questions about which wheelchair caster to purchase, how to determine the correct size, or an installation question, visit our Buying Guide for Wheelchair Caster Wheels.

5 x 1 3/4 Pride Wheelchair Anti Tip Caster Assembly
5 x 1.75 Pride Wheelchair Anti Tip Caster Assembly
CW067, C1745, DIYC1745
Pride Part number WHLASMB1745
