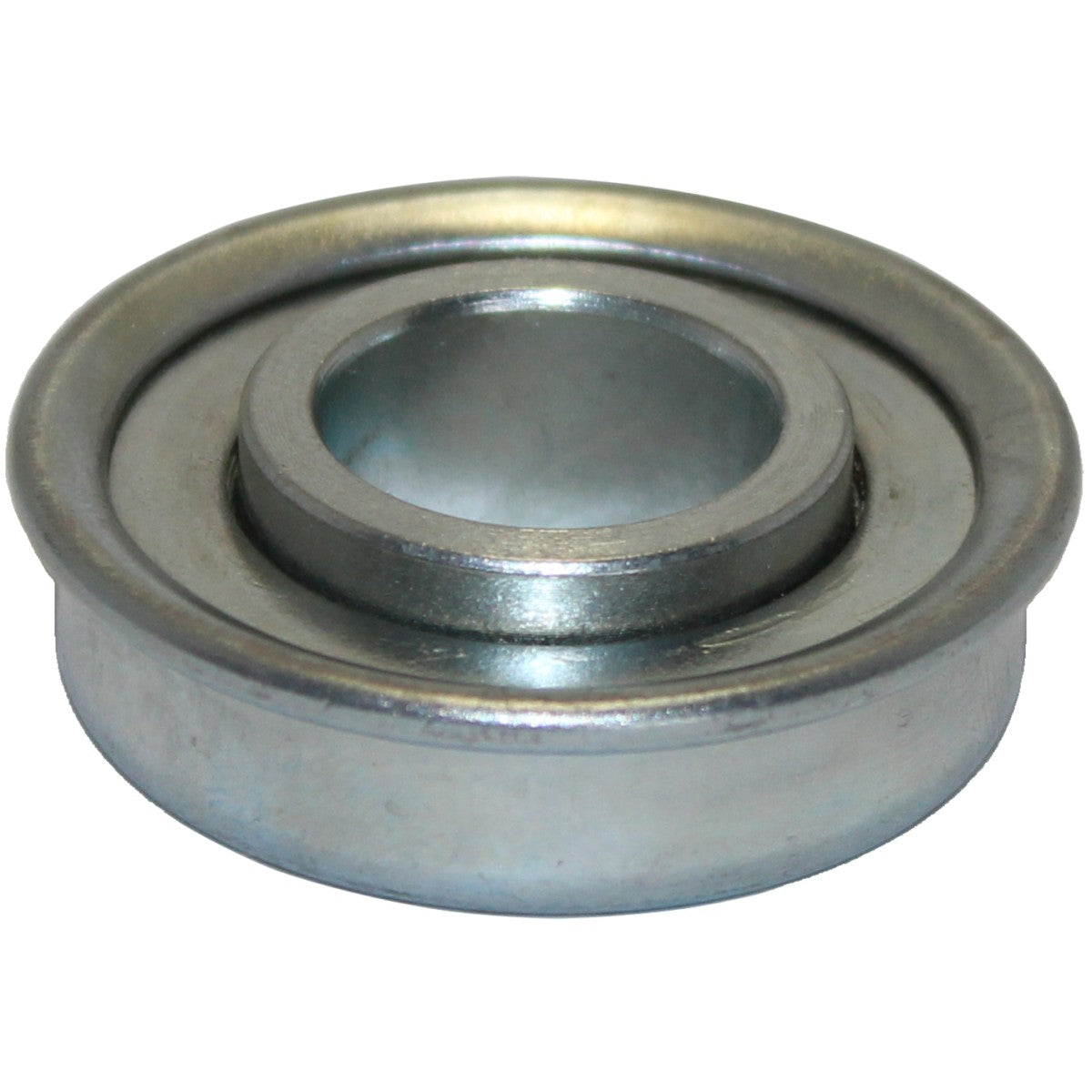

The 5/8 x 1 3/8 x 1/2 in. 58138 Flanged wheelchair or scooter bearing features a maintenance free design and is used on some bariatric heavy duty wheelchair wheels. Also replaces Invacare part number 1192848 and others.
Product Features
- Maintenance free design and pre-greased
- Reference number 58138
- Inside diameter (bore) 5/8"
- Outside diameter 1 3/8"
- Outside diameter including flange 1 1/2"
- Width (thickness) 7/16" including slightly extended inner race
- Sold individually (each)
Fitment Notes:

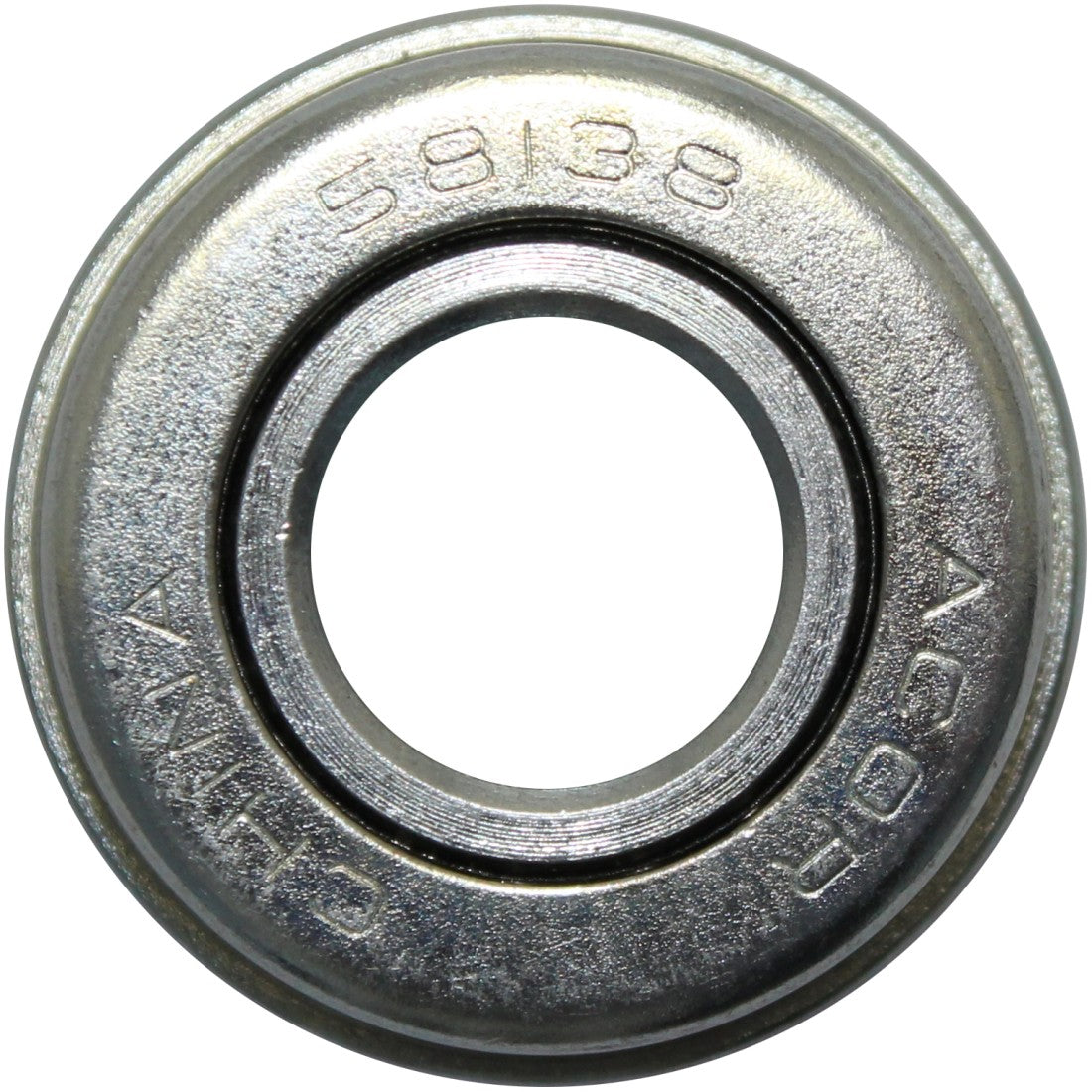

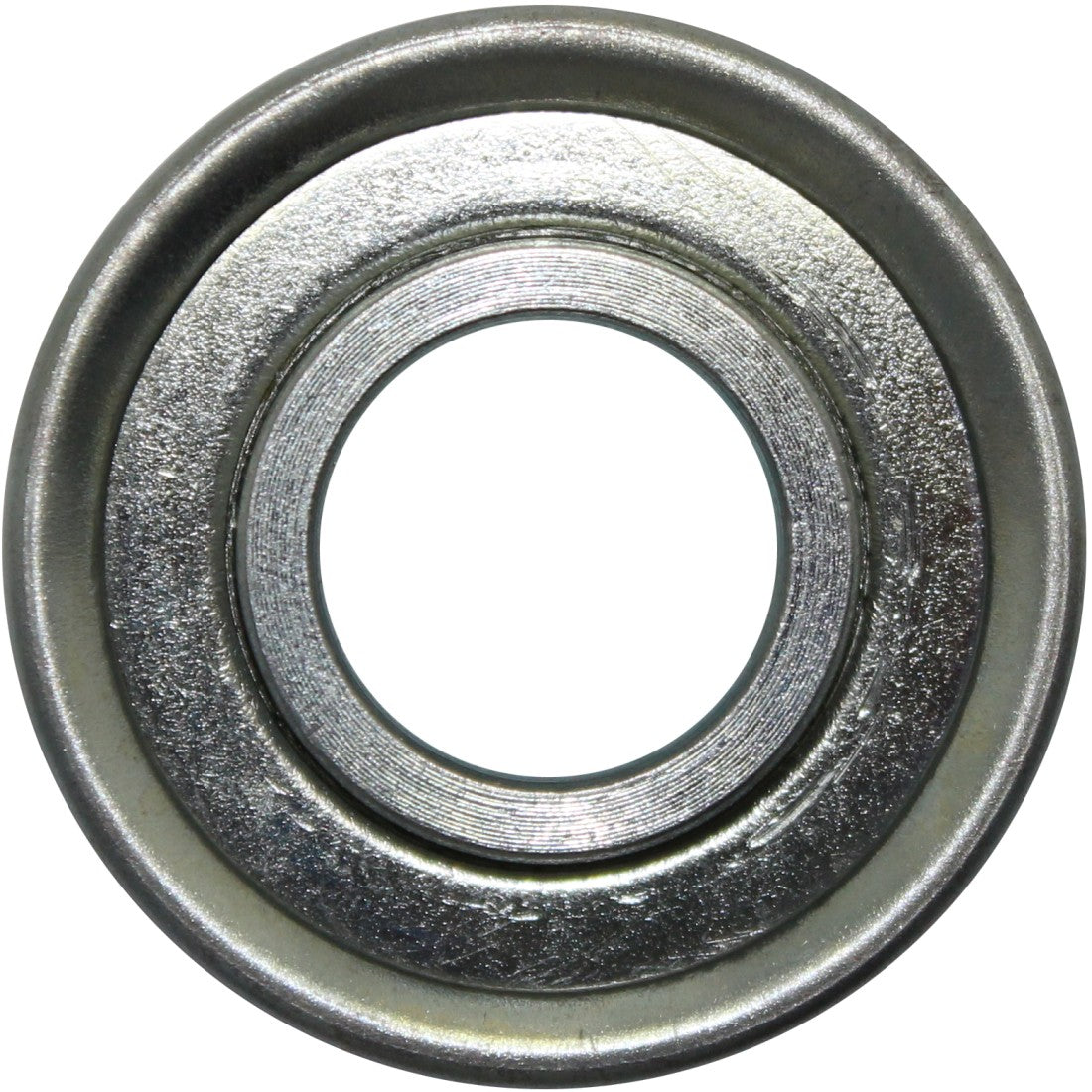

This bearing is used on the wheel of some bariatric wheelchair wheels using heavy duty 5/8" axles. The flange is what holds it in place. The reference number is usually stamped on the back side meaning you'll have to remove the bearing to see it. If no reference number is present, you'll have to measure. Invacare uses this bearing on many of it's caster fork barrels (typically two per barrel - upper and lower).
Replacement for the following manufacturer part numbers:
- Invacare - 1192848
General Wheelchair and Scooter Bearing Notes:
Many bearings found on wheelchairs and scooters have a alpha numeric reference or just a numeric reference number stamped on the side of the bearing which refers to the type and size of the bearing. In most cases, that is all you need to purchase the correct bearing. If your bearing has no reference on it, you will have to measure. If the bearing reference appears worn off, you may be able to see it stamped on the other side. Click the "Fitment" tab for more information on how to identify or measure your bearing.
Most wheelchair bearings are replaceable. Knowing the size of the bearing, reference number, and type of bearing can help you identify a replacement. When measuring your bearing, measure the following and compare it to the product description:
- Outer Diameter
- Inner Diameter
- Width
- Bearing reference number
