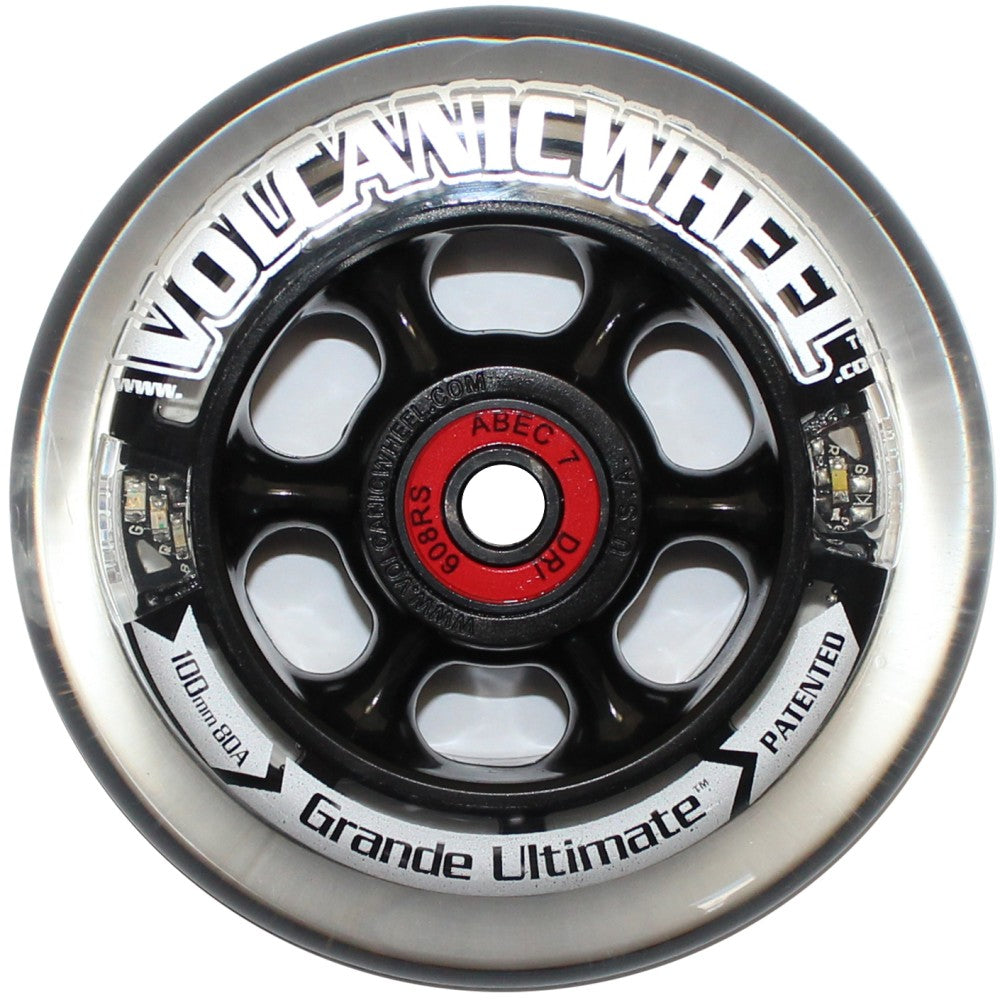

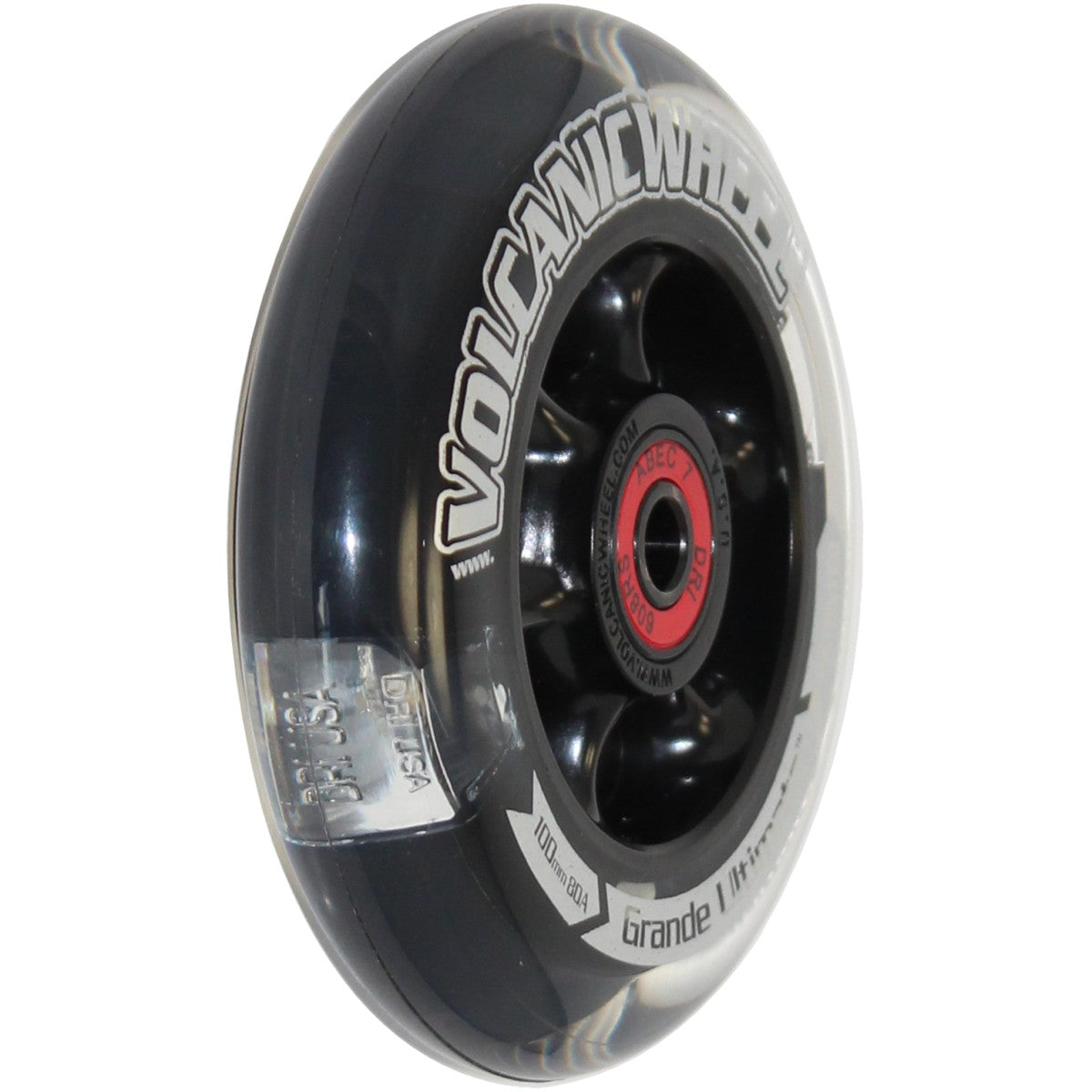

4 x 1 in. (100 mm) Volcanic Light-Up Wheelchair Caster Wheel

The 3 x 1 in. (76 mm) Volcanic Glare Ultimate Light-Up Wheelchair Caster features 8 bright LED lights, self generating electrical system, and a clear solid urethane tire. Replacement for light up caster wheel CP101436 and others.

Product Features

• Features 4 bright LED lights per side in green, red, blue, and white (8 lights per wheel)

• Lights can be seen at 360 degree angles

• Solid flat free tire made from clear urethane

• Water resistant design helps keep lighting elements dry*

• Lights are powered by a self generating system - no batteries required

• 1" hub width (use the guide below for help measuring your existing caster wheel)

• 5/16" inner diameter high performance bearings included (608Z)

• Latex free

• Sold individually (each). For a pair, order quantity 2

*Water-resistant does not mean waterproof. Please exercise caution when using your wheelchair in wet or rainy conditions to prevent potential damage.

How Does it Work?
As the wheelchair caster rolls forward or backward, a self generating power system (magnet ring) supplies a small electric charge to power each LED light. The faster the wheelchair caster rolls, the more the LED's light up. Even though there are only 4 small LED lights per side, once rolling they give the impression the entire wheel is covered in lights! In fact the LED light is bright enough to be seen up to 300 meters away making these caster wheels an excellent safety device while using your wheelchair at night.

Light-Up Wheelchair Caster Video

Installation Notes
Installing these caster wheels on your wheelchair is the same as any other except that you need to create a little friction by tightening your axle to a point to make the lights work. If your axle is too tight, you will hear a clicking sound. If no lights are seen, your axle is not tight enough.

Fitment Notes
This lighted wheelchair caster assembly will replace 3 x 1 inch caster wheels found on Quickie, Top End (Invacare), Colours, TiLite, and many other wheelchair brands. Commonly used for anti-tip casters. Comparable to TiLite CP102034 found on TiLite chairs YG, TR, BB, X, YR, TRA, Aero X, XC, YRA, ZRA, ZR, Aero R, SX, YGS, 2GX, Aero Z, EVO, and TX. Comparable to Sunrise Medical 400108 lighted micro caster found on Quickie S636, Quickie S646, and Quickie S626. Confirm your size using the guide below.

If you have questions about which wheelchair caster to purchase, how to determine the correct size, or an installation question, visit our Buying Guide for Wheelchair Caster Wheels.
3x1 in. (76mm) Volcanic Glare Ultimate Light-Up Wheelchair Caster
14760, EYL14760, DIY14760
