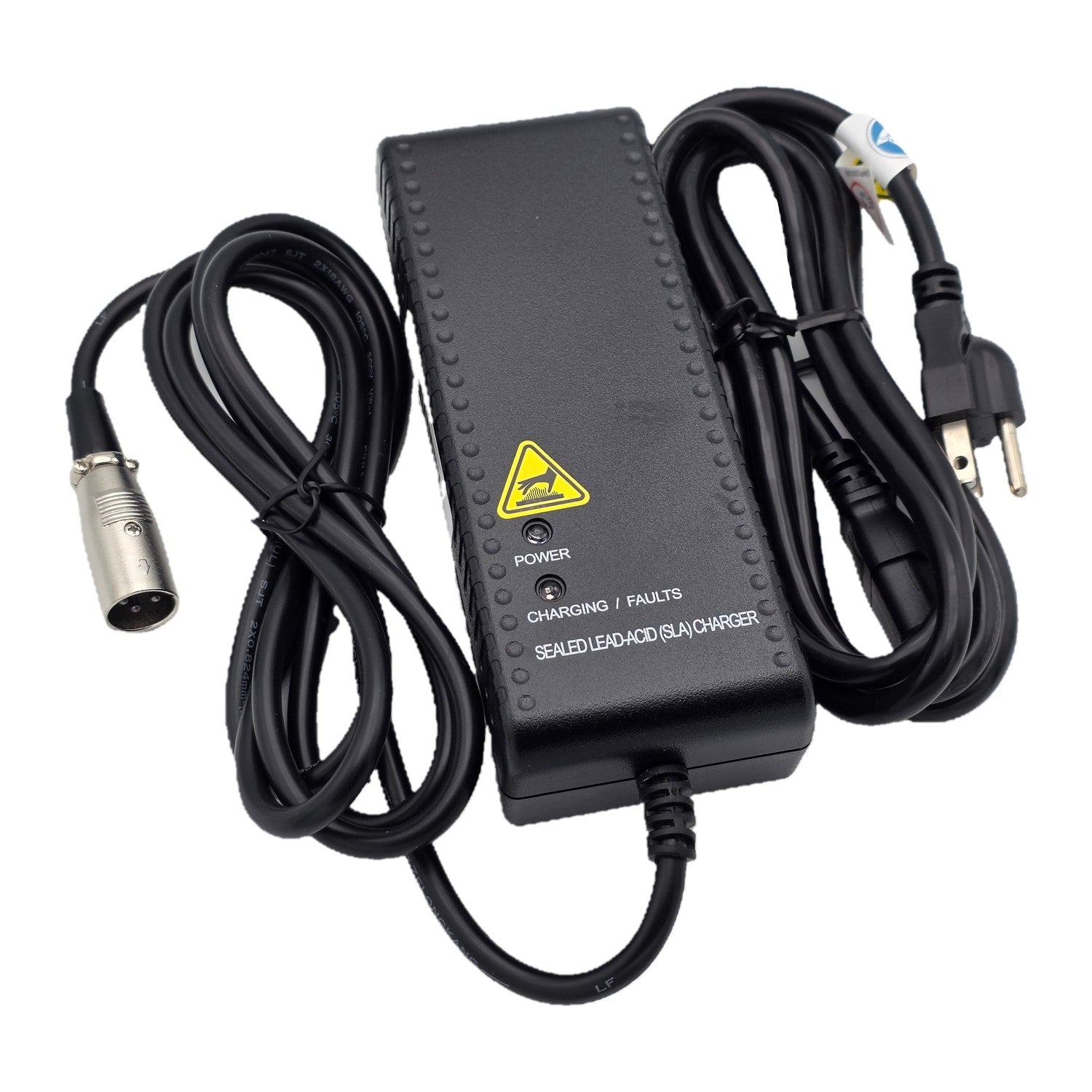

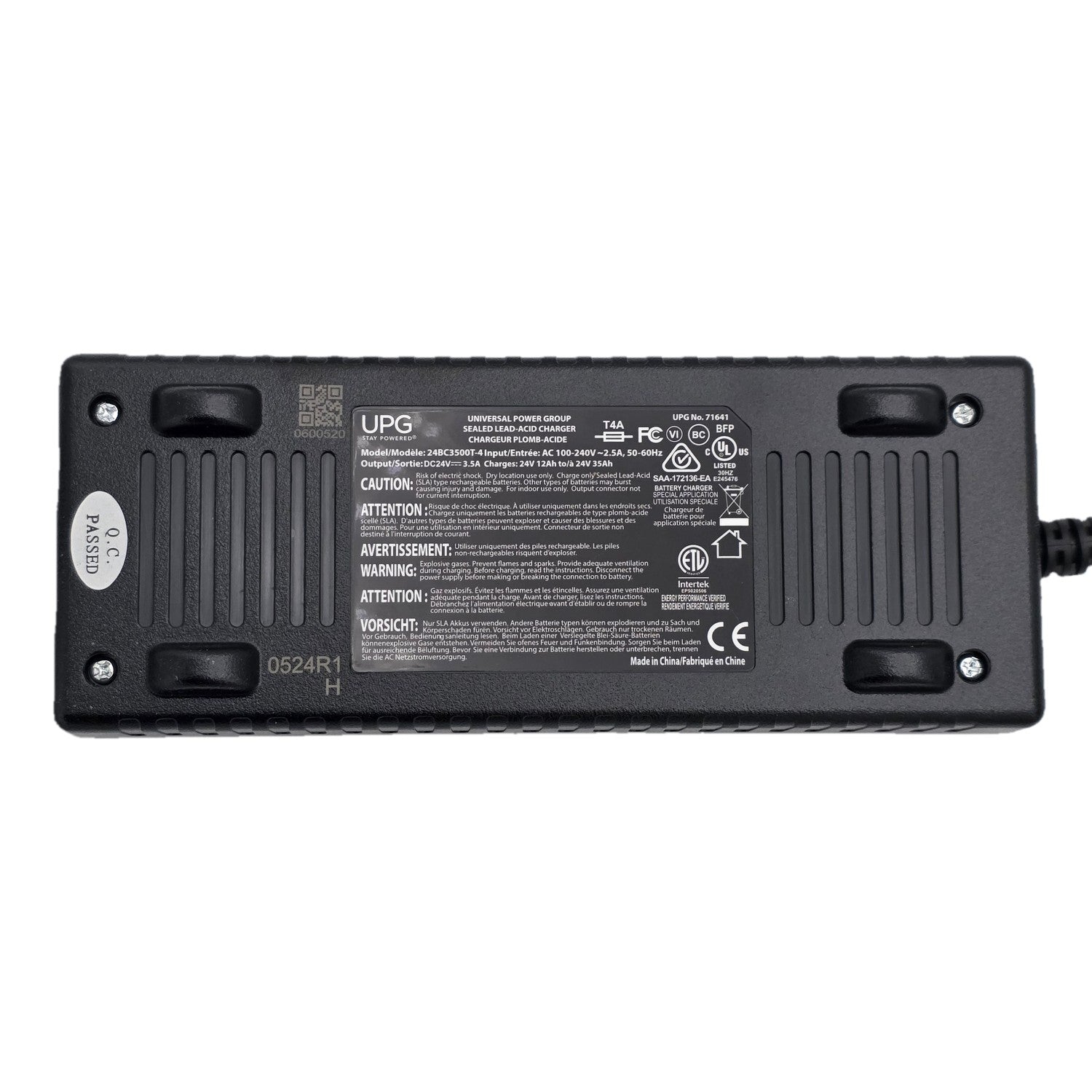

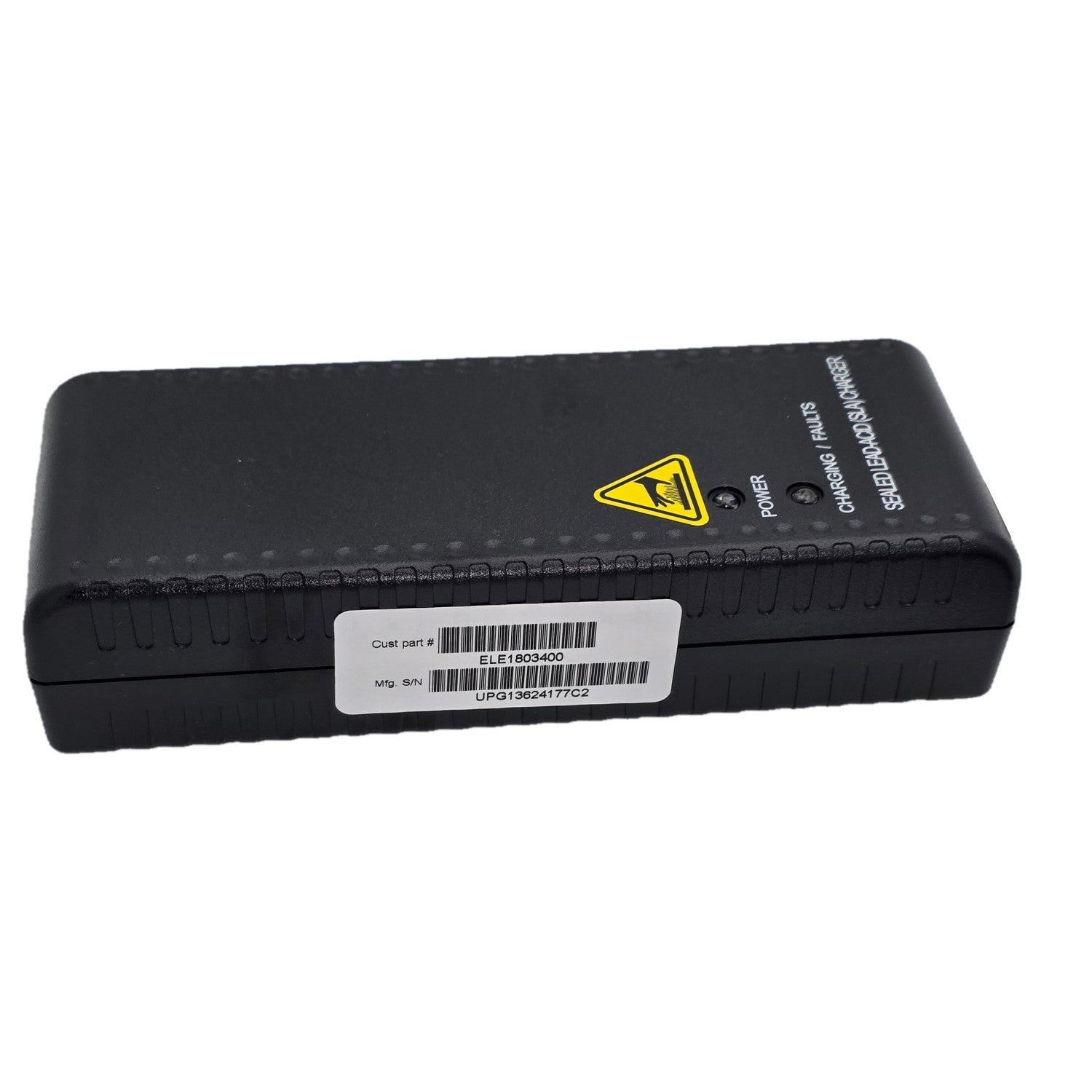

24V 3.5A Battery Charger For Power Chairs (UPG 71641 24BC3500T-4)

The 24V 3.5A Battery Charger for Power Chairs and Mobility Scooters (UPG 71641 / 24BC3500T-4) features a compact, fanless design that is convenient for charging at home or on the go. The fully automatic 3-stage charging system provides efficient charging for compatible 24V battery systems.

Product Features

• 24V, 3.5A output for compatible battery systems
• Fully automatic 3-stage charging for efficient battery charging
• Built-in protection against short circuit, low voltage, and reverse polarity
• Multi-LED indicators display charging status
• Fanless design for quiet operation
• Compact design for convenient use at home or while traveling

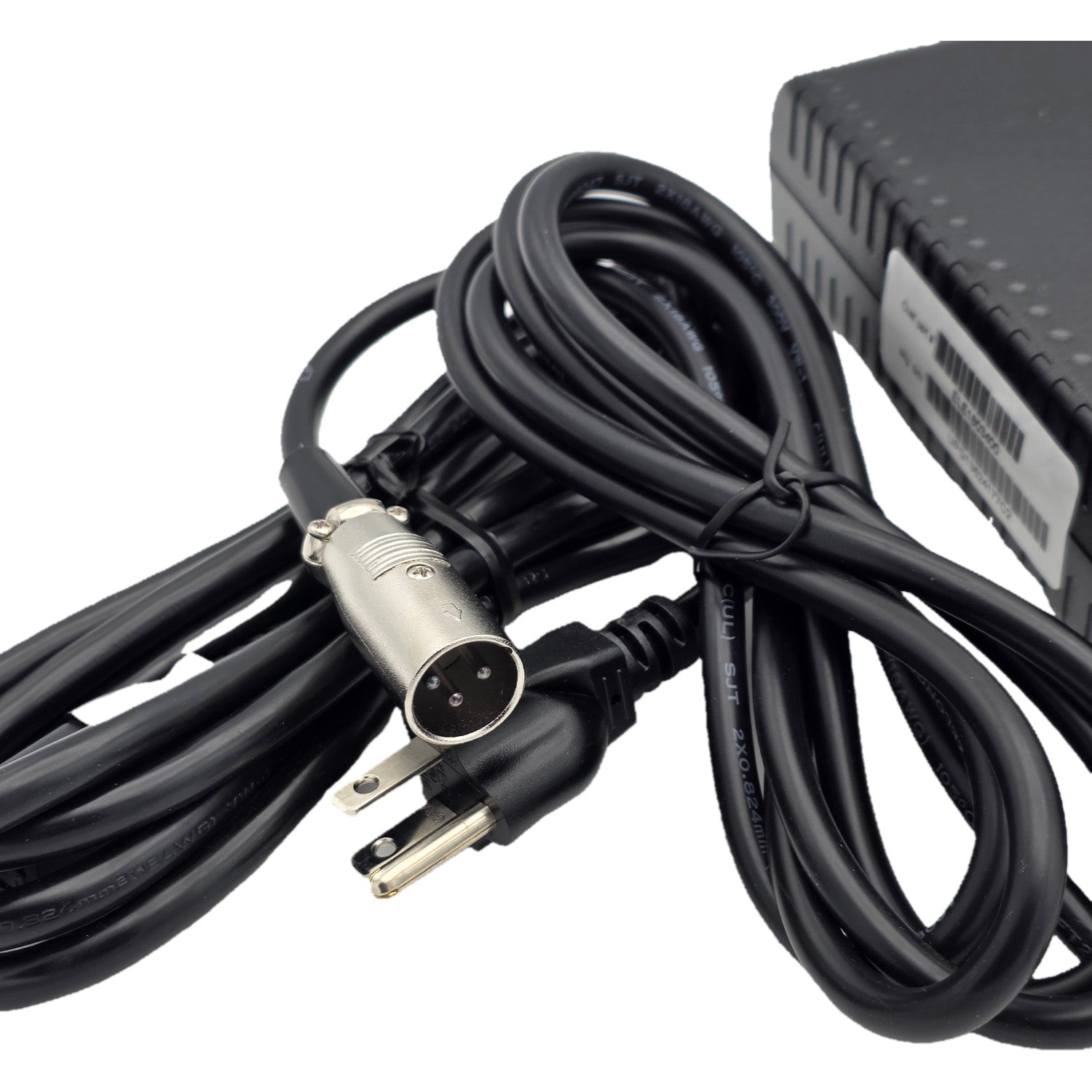

• Standard XLR pin connector
• Compatible with a variety of power chairs and mobility scooters

• Sold individually (each)

Compatibility:
This replacement battery charger is compatible with the power chairs and scooters listed below as well as any other product calling for the Pride Mobility ELE1803400 battery charger.

• Amigo Mobility Centra (310000)

• Amigo Mobility Fiesta One (810000)

• Bruno Catalina 46

• Bruno Cub 30

• Bruno Cub 32

• Bruno Cub 35

• Bruno Cub Pediatric

• Bruno Firefighter 46

• Bruno Humvee 46

• Bruno Police 46

• Bruno PWC-2300

• Bruno SuperCub 34

• Bruno SuperCub 44

• Bruno SuperCub 46

• Bruno Thunder 37

• Bruno Typhoon C3

• C.T.M. Homecare HS-328

• Dalton Medical Primechair

• Golden Alante DX (GP204/GP215)

• Golden LiteRider (GL110/GL111/GL140/GL141)

• Golden LiteRider PTC (GP160)

• Golden Liteway (GL100)

• Invacare Atm QT Take Along Chair

• Invacare Atm Take Along Chair

• Invacare Pronto 31

• Invacare Pronto M41 with SureStep

• Jazzy Air

• Jazz Go Chair

• Jazzy Elite ES

• Jazzy Elite ES Portable

• Jazzy Elite ES 1

• Jazzy EVO 613

• Jazzy Select 6 2.0

• Jazzy Select 6

• Jazzy Select 6 Ultra

• Jazzy Select Elite

• Jazzy Select GT

• Jazzy Select Traveller

• Jazzy Sport 2

• Jazzy Sport Portable

• Merits Junior (P320/P3201/P32011/P32012)

• Merits S637

• Merits Travel-Ease Regal (P120/P1201/P12011/P12012)

• Metro Mobility MAX Plus

• Pride Revo 2.0 (S66/S67)

• Pride TSS 300

• Pride Victory 9

• Pride Victory 9.2

• Pride Victory 10

• Pride Victory 10.2

• Shoprider Cutie L (TE-787LT)

• Shoprider Dasher 9 (GK7-3)

• Shoprider Sprinter XL4 (889B-4)

• Shoprider Start 8 (GK9)

• Shoprider Sunrunner 3 (888B-3)

• Shoprider Sunrunner 4 (888B-4)

Charging Light:
This charger has a LED indicator lights showing the following battery charge level:

• 2 Solid Red - Battery is charging
• 1 Solid Red & 1 Flashing Green - Float charge
• 1 Solid Red & 1 Solid Green - Battery is charged
• 1 Solid Red & 1 Rapid Flashing Red - 12 hour clock timeout
• 1 Solid Red & 1 Flashing Red - Fault, refer to LED Status Faults
• 1 Solid Red - Charger is connected to power, no battery connected
• No Lights - Charger is disconnected from power.

Product Specifications:

• Model: 24BC3500T-4 (UPG No. 71641)

• Input voltage is 100V - 240Vac
• Output voltage (Fast Charge) is 28.6V
• Output voltage (Float Charge) is 26.6V
• Output Current is 3,500mA
• Typical Battery Capacity 12 - 35 Ah (Suggested)

24V 3.5A Battery Charger For Power Chair (UPG 71641 Model 24BC3500T-4) Cust Part # ELE1803400
