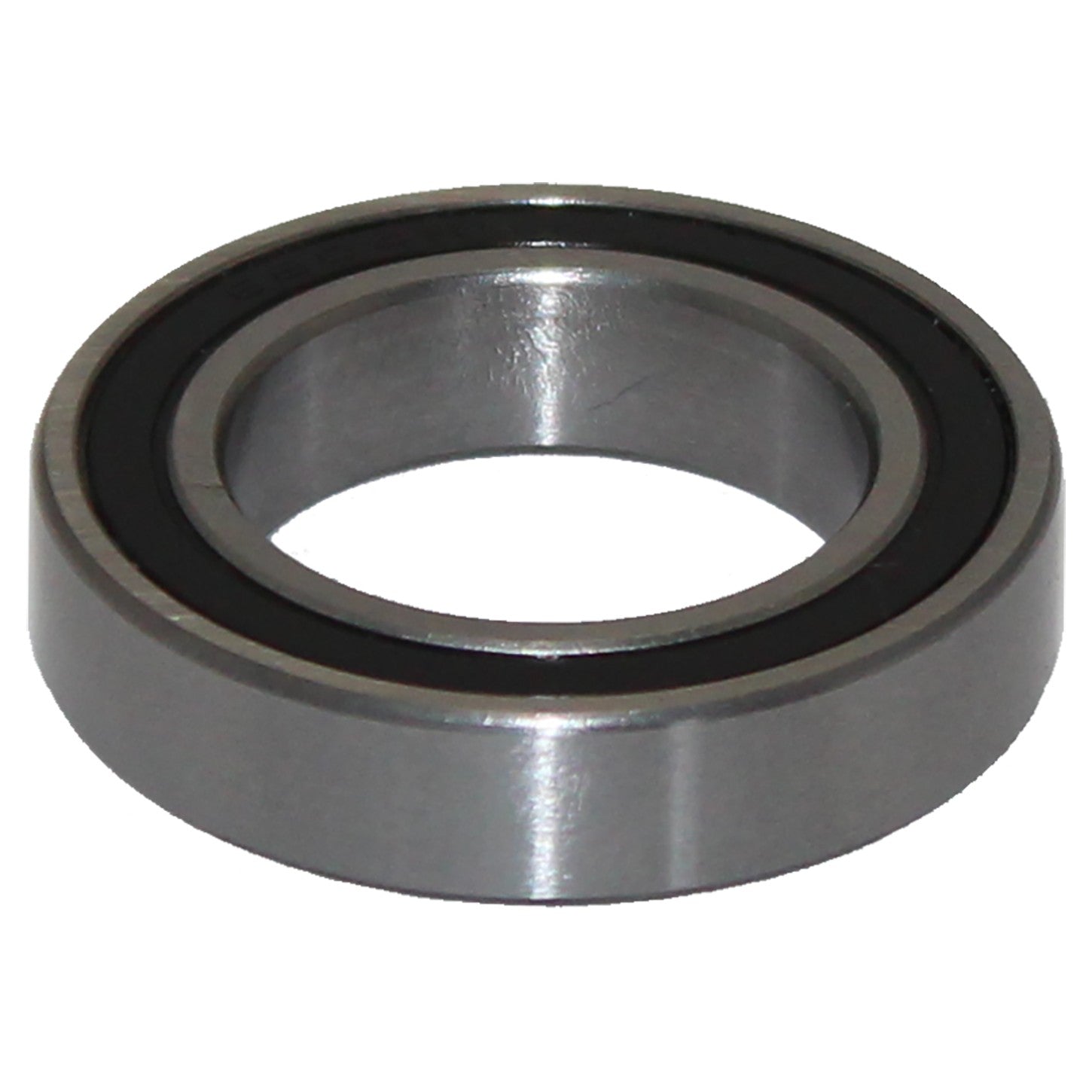

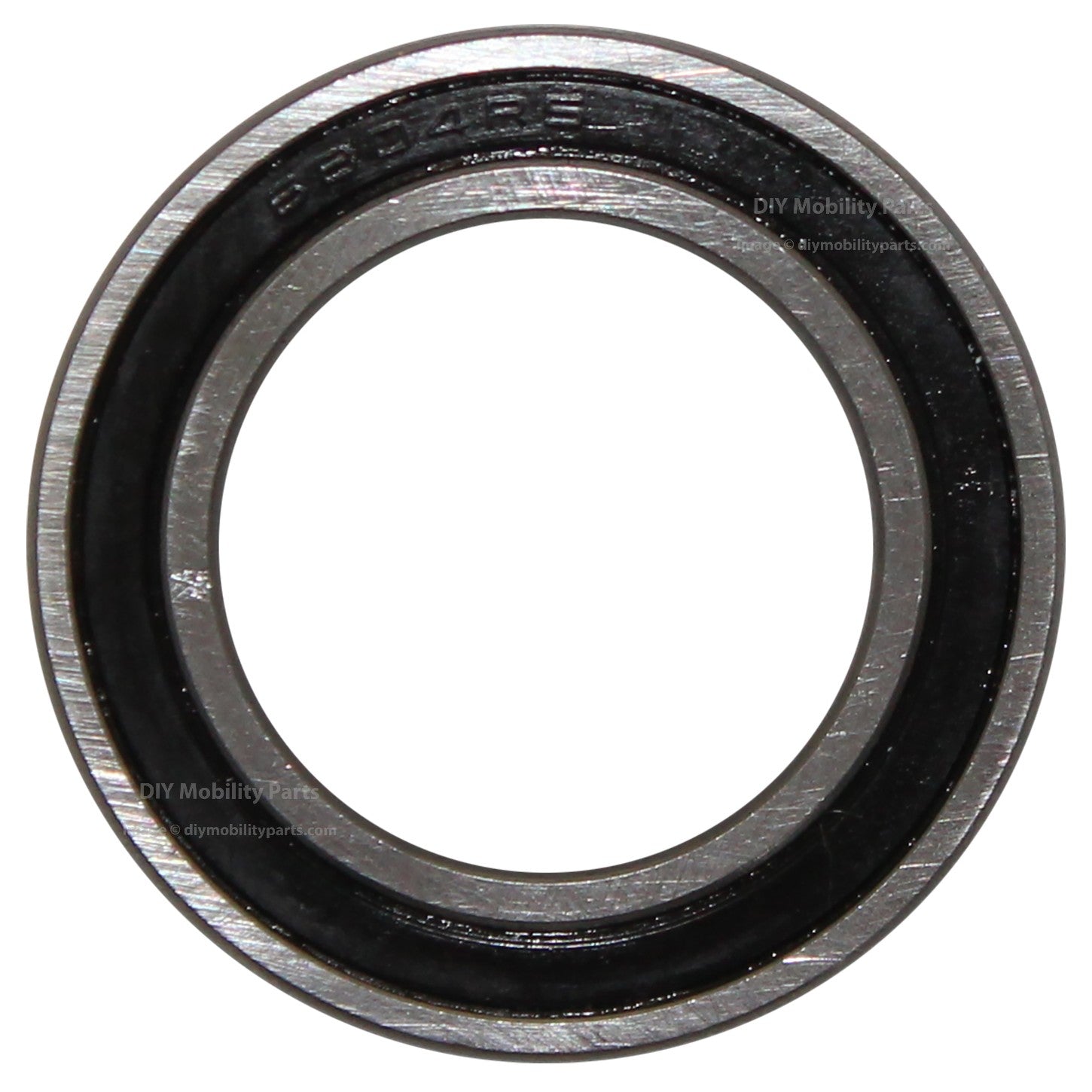

6804RS Precision Wheelchair or Scooter Bearing (20x32x7 mm)

The 6804RS Precision Wheelchair or Scooter Bearing (20x32x7 mm) is used on some power wheelchairs including the Quickie S626 on the caster fork stem. Replacement for bearing reference numbers 6804RS, 6804-2RS, 6804Z, 6804ZZ.

Product Features

• Maintenance free design and pre-greased

• High quality double shielded design keeps grease in and contaminants out

• Replacement for bearing reference numbers 6804RS, 6804-2RS, 6804Z, 6804ZZ

• Inside Diameter (bore): 20 mm (.7874 in.)

• Outside Diameter: 32 mm (1.2598 in.)

• Width (thickness): 7 mm (.2755 in.)

• Sold individually (each)

Fitment Notes:
This bearing is used on some power wheelchairs including the Quickie S626 as the caster fork stem bearing. It is important to verify the reference number on your existing bearing as Quickie had several caster fork options for the S626 using different bearings. The reference numbers should be 6804RS, 6804-2RS, 6804Z, or 6804ZZ. If no reference number is found, you'll have to measure.

General Wheelchair and Scooter Bearing Notes:
Many bearings found on wheelchairs and scooters have a alpha numeric reference or just a numeric reference number stamped on the side of the bearing which refers to the type and size of the bearing. In most cases, that is all you need to purchase the correct bearing. For alpha numeric reference numbers ending in Z, ZZ, RS, or 2RS, they are all interchangeable (Z and ZZ refer to a metal outer side shield and RS and 2RS refer to a rubber outer side shield protecting the balls inside the bearing). If your bearing has no reference on it, you will have to measure. If the bearing reference appears worn off, you may be able to see it stamped on the other side. Click the "Fitment" tab for more information on how to identify or measure your bearing.
