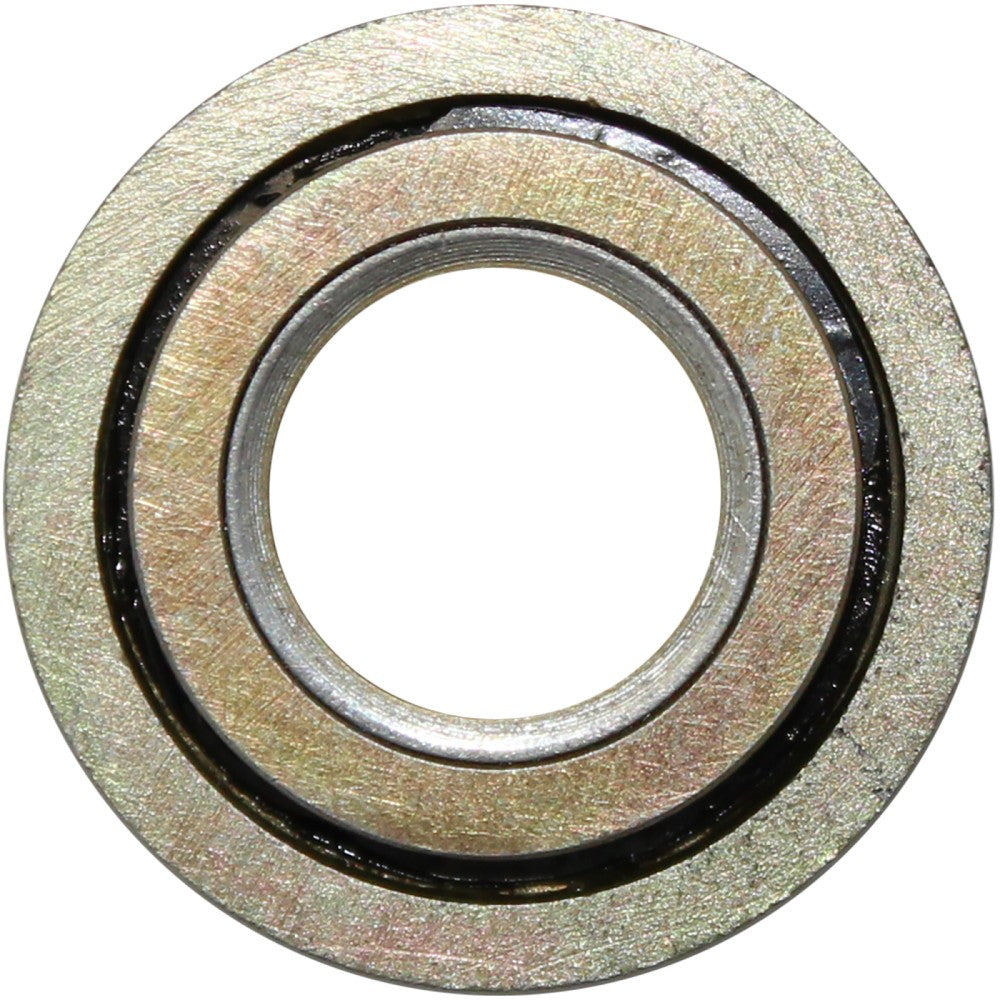

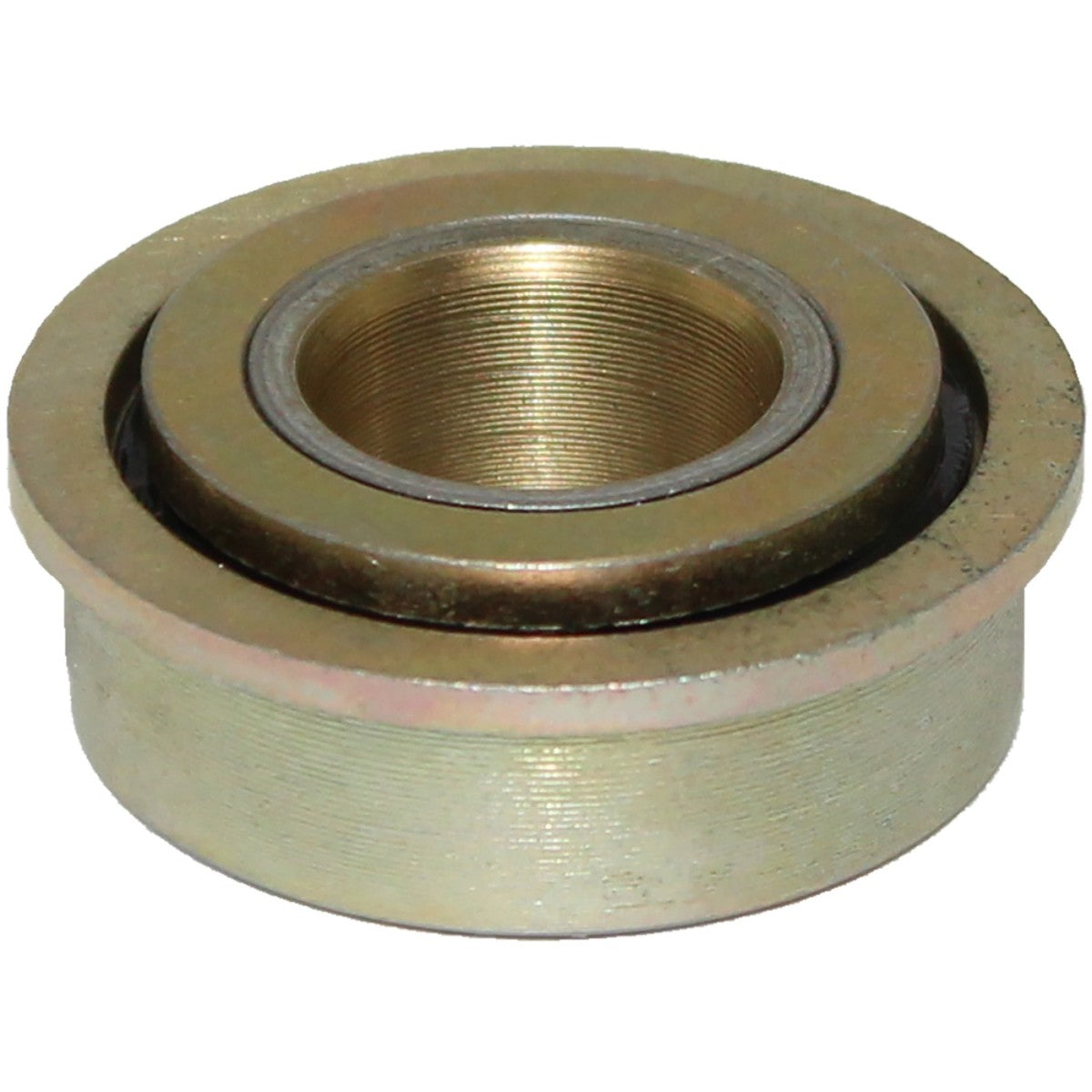

1/2 x 1 1/16 in. Flanged Wheelchair or Scooter Bearing

The 1/2 x 1 1/16 in. Flanged wheelchair or scooter bearing is commonly used on the caster stem fork of a manual wheelchair and features a maintenance free design.

Product Features

• Maintenance free design and pre-greased

• Reference number not available

• Inside Diameter (bore): 1/2"

• Outside Diameter: 1 1/16"

• Outside Diameter including flange: 1 3/16"

• Width (thickness): 7/16"

• Sold individually (each)

Fitment Notes:
This bearing is commonly used as the caster fork stem bearing on many manual wheelchairs. Typically each caster fork stem takes two bearings (one on the top and one on the bottom). The flange is what holds it in place. Since there are no reference numbers, you'll want to verify your size using the guide below. Known to fit certain caster stems on wheelchairs from Theradyne and Everest & Jennings (E&J).

This Bearing can be used as a replacement for the following manufacturer part numbers:

• TAGRP165003
• TAGRP165003PK

• H121116A
• B05

General Wheelchair and Scooter Bearing Notes:
Many bearings found on wheelchairs and scooters have a alpha numeric reference or just a numeric reference number stamped on the side of the bearing which refers to the type and size of the bearing. In most cases, that is all you need to purchase the correct bearing. For alpha numeric reference numbers ending in Z, ZZ, RS, or 2RS, they are all interchangeable (Z and ZZ refer to a metal outer side shield and RS and 2RS refer to a rubber outer side shield protecting the balls inside the bearing). If your bearing has no reference on it, you will have to measure. If the bearing reference appears worn off, you may be able to see it stamped on the other side. Click the "Fitment" tab for more information on how to identify or measure your bearing.
